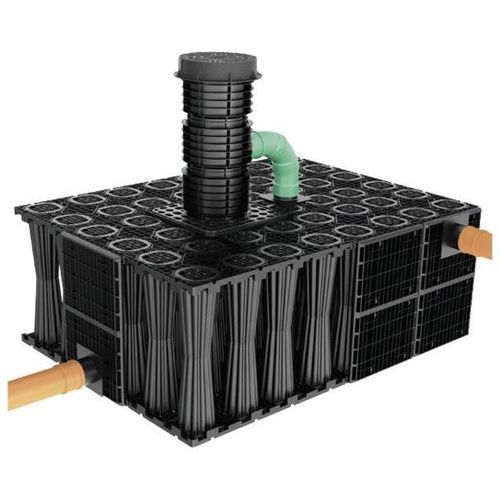

Road stormwater management module STORMBRIXX® MULTIBRIXX 900

for heavy load trafficinfiltrationin-ground

Product benefits

• High structural stability through geometry and interlocking installation
• Allows inspection and flushing in all directions
• Reduced transport costs due to stackable base elements
• Lower CO2 emissions thanks to decreased transport volume
• Easy installation based on a modular kit principle
• Storage coefficient: 97 %
• Tested by the Society for Materials Research and Testing Institute for Civil Engineering Leipzig mbH (MFPA Leipzig)
• Suitable for heavy traffic (SLW 60)

Product information

• Modular plastic chamber system for:
  • retention of stormwater
  • storage of stormwater
  • infiltration of stormwater
• Individual elements are assembled on site into an interconnected block system
• Layer height: 924 mm
• Base elements per m³: 3
• Volume per base element: 328 L
• Min. cover height: 0.8 m (observe required road construction according to RStO)
• Max. cover height: 2.25 m
• Max. cover height (SLW 30): 2.75 m
• Max. cover height (SLW 60): 2.25 m

Infobox

• Design with the ACO ProjectManager: online tool for sizing and dimensioning the stormwater management system

Variants / Ordering information (excerpt)
Designation;Length [mm];Width [mm];Height [mm];Weight [kg];Item no.;Price/pc [€]
Base element;1210;605;462;11.5;3015116;108.75
Side wall;907;592;104;3.1;314091;32.00
Cover;550;550;50;0.8;314092;8.70

Technical characteristics / specifications

• Modular plastic chamber system
• Storage coefficient: 97 %
• Volume per base element: 328 L
• Layer height per course: 924 mm
• Base elements per m³: 3
• Cover heights: min. 0.8 m; max. up to 2.25 m (depending on load class / SLW)
• Suitable for heavy traffic (SLW 60)
• Inspectable and flushable in all directions
• Stackable base elements to reduce transport volume
• Tested by MFPA Leipzig
