Basin stormwater management module STORMBRIXX® POWERBRIXX 600
for roadsin-groundinfiltration

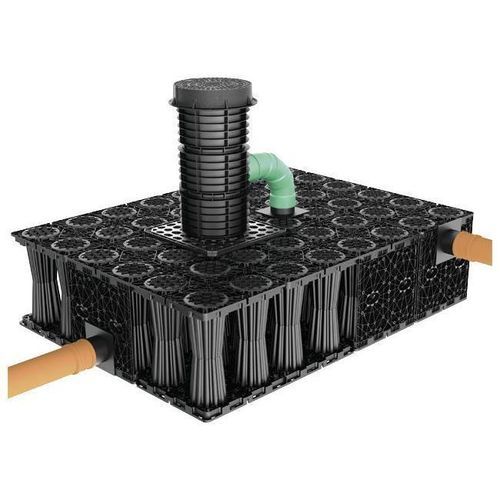

Basin stormwater management module - STORMBRIXX® POWERBRIXX 600 - ACO - for roads / in-ground / infiltration
Basin stormwater management module - STORMBRIXX® POWERBRIXX 600 - ACO - for roads / in-ground / infiltration
Add to favorites
Compare this product

Characteristics

Application
for basin, for roads
Other characteristic
in-ground, infiltration

Description

Product benefits
  • High stability through geometry and bonded installation
  • Inspectable and flushable in all directions
  • Low transport costs due to stackable base elements
  • Reduced CO₂ emissions through optimized transport
  • Easy installation thanks to modular kit principle
  • High void volume of 95%
  • Approved by DIBt Berlin, No. Z-42.1-500


Product information
  • Modular trench/cell system made of plastic for:
    • retention of stormwater
    • storage of stormwater
    • infiltration of stormwater
  • Individual elements are assembled on site into a connected block system
  • Height:
    • One layer: 613 mm
    • Half layer: 328 mm
  • Base elements per m³: 4.55 units
  • Volume per base element: 209 l
  • Min. cover depth: 0.8 m (observe required pavement structure according to RStO)
  • Max. cover depth: 3.40 m
  • Suitable for heavy traffic (SLW 60)


Available components / system components (excerpt)
  • Base element (Art. No. 314061): Dimensions 1206 x 603 x 328 mm, Weight 10.0 kg, Volume 209 l
  • Side wall (Art. No. 314097): Dimensions 600 x 592 x 32 mm, Weight 1.8 kg
  • Cover (Art. No. 314094): Dimensions 1200 x 600 x 40 mm, Weight 3.5 kg
  • Connector (Art. No. 314023): for connecting base elements (Weight 0.1 kg)
  • Inspection and flushing shaft with integrated throttle (various DN versions, e.g. Art. No. 314159 / 314158 / 314157; example dimensions: 594 x 594 x 610 mm, Weight 37 kg)
  • Shaft lower/intermediate part (Art. No. 27034): access and connection option within the trench system (Dimensions 594 x 594 x 610 mm, Weight 32 kg)
  • Various adapters for pipe connections (DN/OD 110–400) and top parts/shaft covers (cast iron, load class D 400)


Technical characteristics / specifications
  • System: Modular plastic trench/cell system (block system assembled from individual base elements)
  • Void volume: 95%
  • Volume per base element: 209 l
  • Base elements per m³: 4.55 units
  • Base element — Dimensions (L x W x H): 1206 x 603 x 328 mm
  • Height of one layer: 613 mm; half layer: 328 mm
  • Weight base element: 10.0 kg
  • Minimum cover: 0.8 m (observe pavement structure according to RStO)
  • Maximum cover: 3.40 m
  • Load / application: Suitable for heavy traffic (SLW 60)
  • Approval: DIBt Berlin No. Z-42.1-500
  • Material: Plastic (polypropylene/PP-based system components and accessories; some covers in cast iron EN-GJL)
  • Maintenance / servicing: Inspectable and flushable in all directions; integrable inspection and flushing shafts with throttle options
