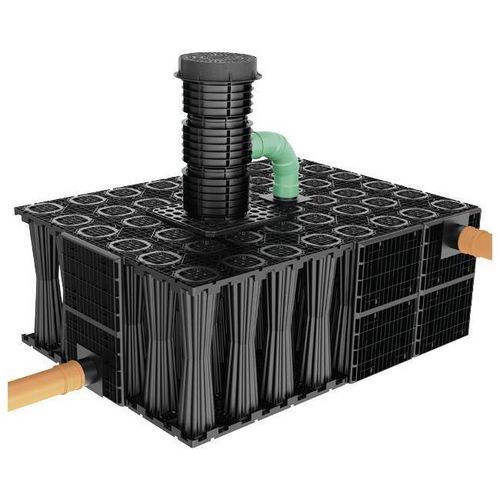

Public work stormwater management module STORMBRIXX® POWERBRIXX 900

for parking lotfor roadsin-ground

Product benefits

• Maximum stability through geometry and laying in bond
• Inspection and flushing possible in all directions
• Low transport costs due to stackability of base elements
• Lower CO2 emissions due to reduced transport effort
• Easy installation with modular kit principle
• Void volume of 97 %
• Approved by DIBt Berlin No. Z-42.1-500

Product information

• Modular drainage chamber system made of plastic
• Applications: retention, storage and infiltration of rainwater
• Individual elements are assembled on site into an interconnected block system
• Height per layer: 920 mm
• Base elements per m³: 3
• Volume per base element: 319 l
• Min. cover height: 0.8 m (observe required road construction according to RStO12)
• Max. cover height: 4.0 m
• Suitable for heavy traffic (SLW 60)
• Low transport costs due to stackability of base elements

Order information (excerpt)
Item No. | Length [mm] | Width [mm] | Height [mm] | Weight [kg] | Price (RRP excl. VAT) [€]
314154 | 1208 | 604 | 481 | 12,4 | 105,50
314091 (side wall) | 907 | 592 | 104 | 3,1 | 32,00
314098 (side wall) | 450 | 592 | 40 | 1,5 | 21,75
314092 (cover) | 550 | 550 | 50 | 0,8 | 8,70

Characteristics / technical specifications

• Material: plastic (modular drainage chamber system)
• Height per layer: 920 mm
• Base elements per m³: 3
• Volume per base element: 319 l
• Void volume: 97 %
• Minimum cover: 0.8 m (observe RStO12)
• Maximum cover: 4.0 m
• Suitable for heavy traffic: SLW 60
• Approval: DIBt Berlin No. Z-42.1-500
• Assembly: modular kit principle; individual elements can be assembled on site into an interconnected block system
• Inspection/flushing: inspection and flushing access possible (in all directions)
