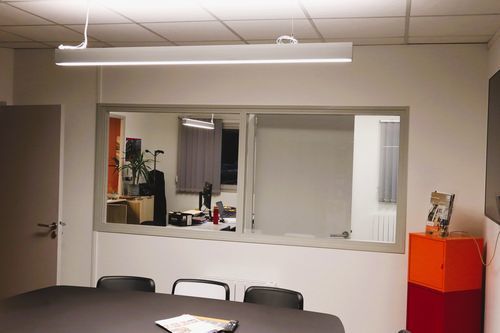

Hanging light fixture ACTiLine4388A

LEDlinearhigh

LED luminaire designed and manufactured in France. Featuring dual-flux lighting (upward indirect and downward direct), this linear LED solution is specifically engineered for tertiary sectors, including conference rooms, private offices, and reception halls.

Both LED sources (uplight and downlight) are independent and can be controlled separately. Optional phase-cut dimmers allow for precise light level adjustments to create specific lighting scenes.
Example: Presentation mode in a meeting room
- Ambient lighting (Indirect): ON to maintain visibility.
- Task lighting (Direct): OFF or dimmed to a minimum via push-button or DALI to optimize projector contrast.

Materials & Finishes
- Body: Extruded aluminum profile
- End caps: Aluminum
- Finishes: Anodized Gray, White, Black, or custom RAL colors
- Direct Diffuser: Anti-glare Polycarbonate or Opal PMMA
- Indirect Diffuser: Opal PMMA

Installation & Accessories
- Power Supply: Direct 230V AC input (no external driver required)
- Wiring: 5G 0.75mm² top-exit cable, 2m length
- Mounting: Suspension kit via aircraft cables (available as an accessory)

Custom Options
- End-cap cable exit
- Custom cable lengths
- Extended continuous runs or geometric configurations (L-junctions) available upon request

Technical Specifications
- Color Temperatures: 3000K (Warm White) | 4000K (Neutral White)
- CRI: 84
- Lifespan: 50,000 hours (L90B10)
- Sustainability: Replaceable LED module; luminaire fully repairable in-house or on-site.
