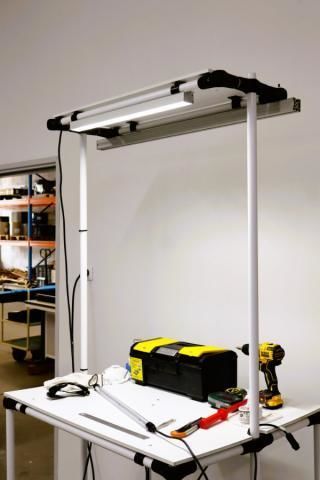

Built-in lighting profile ACTILINE4330A

surface mountedLEDpolycarbonate

The ACTiLine4330A is a specialized LED linear luminaire designed for fixed industrial workstations, including assembly lines and workshops. It is available in four lengths and two power levels to suit various technical requirements.

Superior Lighting Quality
- Color Rendering Index (CRI): Ra > 84
- Color Temperatures: 4000K (Neutral White) or 5000K (Cool White)
- Anti-glare technology for enhanced visual comfort
- High Illuminance: Up to 1500 lux on the work surface (measured at a 1-meter mounting height)

Streamlined Integration
- Compact Design: Ultra-slim profile for easy installation
- Direct Connection: Operates without an external power supply
- Versatile Mounting: Compatible with various mounting accessories
- Control Ready: Supports dimming and lighting control accessories

Technical Specifications
- Protection Rating: IP40, IK05, Class I
- Dimensions: 43 x 30 mm
- Available Lengths: 0.6m, 1.2m, 1.8m, 2.3m, 2.9m
- Weight: 0.87 kg/m
- Luminous Flux: 2600 lm/m
- Power Consumption: 27 W/m or 33 W/m
- Input Voltage: 230VAC +/-10%, 50/60 Hz
- Power Factor: 0.98
- Dimming: Phase-cut dimming
- Service Life: 50,000 hours (L90B10)

Materials & Finishes
- Housing: Extruded aluminum profile
- End Caps: ABS (Standard) or Aluminum (IP54 Option)
- Finish: Anodized Gray (Standard)
- Diffuser: Polyprismatic Polycarbonate
- Mounting: Surface-mounted

Installation & Accessories
The unit offers three standard mounting methods:
1. Bracket base
2. Clip
3. Plate
Custom mounting solutions are available upon request.

Options
- Customized cable lengths
- IP54 Protection (requires aluminum end caps)
- Aluminum end cap mounting brackets (4.2mm notch)

• Made in France | CE Certified | Direct 230V Connection
• Model : ACTiLine4330A
• Type : Industrial LED Linear Luminaire
• CRI > 84
• CCT : 4000K, 5000K
• Efficiency : 2600 lm/m
• Material : Aluminum, ABS, Polycarbonate
• Certification : CE, Made in France
