Hanging light fixture ACTILUSTRE4388H

LEDsquareIP40

The ACTiLustre4388H is a premium, dual-emission (direct/indirect) linear LED luminaire, specifically engineered for creating angular chandeliers and illuminating demanding architectural structures. Featuring independent control of its upper and lower light outputs, it offers ultimate flexibility to sculpt light and program bespoke lighting scenarios.

Key Features for Your Projects

• Sleek Integration: Direct 230V connection with no external power supply unit required, ensuring a minimalist aesthetic.
• Maximum Modularity: Available in various lengths and RAL finishes upon request.
• Smart Lighting: Independent or simultaneous control of direct and indirect outputs (compatible with DALI-2 dimming).
• Premium Quality: Designed and manufactured in France, guaranteeing high durability (L90B10 at 50,000 hours).

Typical Applications

• Architectural and decorative lighting
• Lobbies, atriums, and double-height spaces

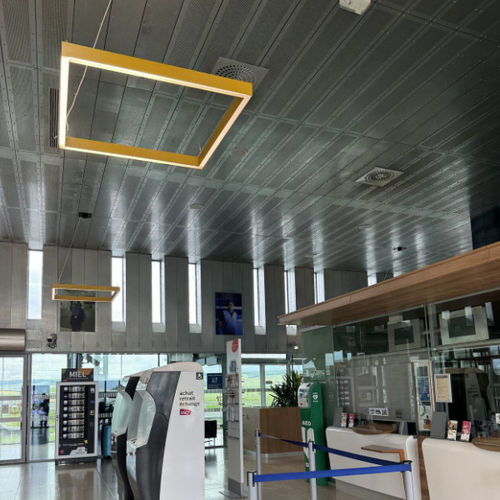

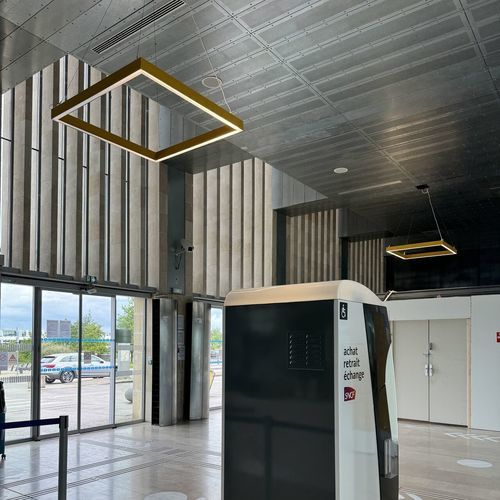

• Monumental chandeliers and suspended angular structures

Materials & Finitions

• Body: High-grade aluminum
• Standard Finishes: Natural anodized gray, Glossy traffic white (RAL 9006), Matt black (RAL 9005), or any custom RAL color upon request.
• Diffuser Options: Opal PMMA (for homogenous diffusion) or anti-glare Polycarbonate.

Installation & Mounting

• Suspended: Specialized central cable suspension system that neatly groups the connections for each LED source.
• Wall-mounted: Direct surface mounting.

Technical Specifications

• Light Distribution: Dual-emission: Direct (down) / Indirect (up) — Independently controllable
• Luminous Flux: Direct: 3700 lm/m | Indirect: 1730 lm/m
• Power Consumption: Direct: 22 W/m | Indirect: 11 W/m
• Efficiency & Comfort: CRI > 84 | Power Factor: 0.98
• Color Temperatures: 3000K (Warm White) | 4000K (Neutral White)
• Power Supply: Direct 230 VAC +/-10%, 50/60 Hz (driverless / no external driver)
• Dimming & Control: Standard ON/OFF | Optional: DALI-2 / Push Button
• Dimensions: Available lengths from 610 mm to 2850 mm
• Protection Ratings: IP40 | IK05 | Electrical Class: Class I
• Lifespan: 50,000 Hours (L90B10)
• Certifications: CE Marking | Made in France
