LED strip light ACTILINE4388H

IP40aluminumpolycarbonate

Overview
This dual-flux LED luminaire provides both indirect (upward) and direct (downward) lighting. The ACTiLine4388H is specifically engineered for meeting rooms and office environments, available in various lengths and diffuser options. Each LED source (up/down) is independent and can be controlled separately to create customized lighting scenes.

Lighting scenarios

• Ambient lighting: Indirect (up) light on
• Task lighting: Direct (down) light off or dimmed via push-button or DALI control.

Typical applications

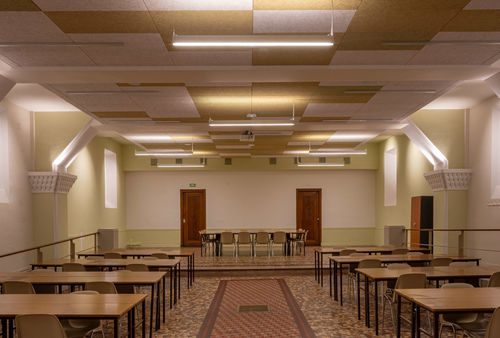

• Offices, conference rooms, and workspaces

Materials & finishes

• Body: Aluminum profile with aluminum end caps.
• Aluminium end caps
• Finishes: Anodized gray, glossy white, matte black, or custom RAL colors upon request.
• Direct Diffuser: Anti-glare polycarbonate or opal PMMA.
• Indirect diffuser: opal PMMA

Installation & accessories

• Integrated Driver: Built-in power supply within the profile.
• Power: 230V ±10%, 50/60 Hz.
• Performance: Flicker-free operation.
• Installation: Easy-to-install design.

Options

• UGR-compliant version: Specifically designed for low-glare visual comfort.

Available colour temperatures

• 3000K – warm white
• 4000K – neutral white

Technical specifications

• Reference: ACTiLine4388H
• Dimensions: 43 x 88.4 mm;
• Available lengths: 0.6 m / 1.2 m / 1.8 m / 2.3 m / 2.9 m
• Luminous flux: Direct: 3700 lm/m (opal); Indirect: 1730 lm/m
• Luminous efficacy > 120 lm/W
• Power consumption: Direct: 22 W/m; Indirect: 11 W/m
• Power Supply: 230V ±10%, 50/60 Hz
• Power factor: 0.98
• Dimming options: DALI-2 / push-button
• CRI: > 84
• Lifespan: 50,000 h (L90B10)
• Protection rating: IP40
• Impact resistance: IK05
• Electrical class: Class I
• Origin / certification: Made in France, CE marking
