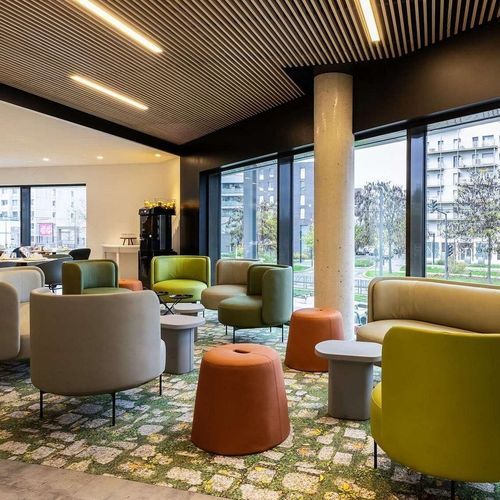

Ceiling lighting profile ACTILINE5541

suspendedwallLED

The ACTiLine5541A is the ideal solution for commercial and office lighting projects, offering exceptional versatility for a wide range of environments. It is available in five different lengths, multiple power levels, and various diffuser options to meet your specific design requirements.

• Uniform lighting across the entire length
• Optional reflector to maximize luminous flux
• Easy installation: No external power supply required
• High reliability: Fully integrated electronics

Key Features

• Protection Levels: IP40, IK07, Class I
• Dimensions: 55 x 42.7 mm | Lengths: 0.6m, 1.2m, 1.8m, 2.3m, 2.9m
• Weight: 1.25 kg/m
• Luminous Flux: 2070 lm/m (Opal) | 3530 lm/m (with Reflector)
• Electrical Power: 13 W/m, 20 W/m, 27 W/m, 33 W/m
• Power Supply: 230VAC +/-10%, 50/60 Hz
• Manufacturing: Made in France | CE Marked | Direct 230V

Materials & Finishes

• Housing: Aluminum profile and end caps
• Finish: Anodized gray or custom RAL colors
• Diffuser: Clear prismatic or opal polycarbonate

Installation & Accessories
- Connection: Direct 230VAC mains connection
- Cabling: 1m rear-exit cable (3x0.75 mm²)
- Mounting Options:

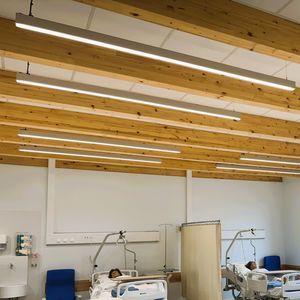

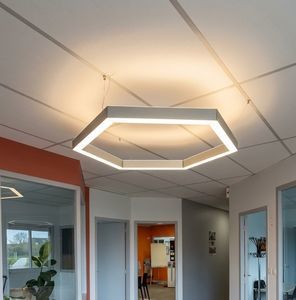

• Suspended via cables (accessory)
• - Surface-mounted with plate (accessory)
• - Via screws in the rear groove
• - Special hooks for timber slat ceilings and walls

- Control Accessories: Phase-cut dimmers and DALI controllers

Technical Options

• High-Efficiency Reflector: For increased light output
• Enhanced Protection: IP54 version available
• Customization: End-cap cable exit, custom cable lengths, or rear groove openings for screw heads
• Color Temperatures: 3000K (Warm White) or 4000K (Neutral White)

Technical Specifications

• Power Factor : 0.98
• Dimming : Phase-cut (Trailing edge)
• CRI >84
• Lifespan : 50,000 Hours (L90B10)
• Materials : Aluminum profile & end caps; Polycarbonate diffuser
• Mounting : Suspended, Surface, or Timber Slat systems
