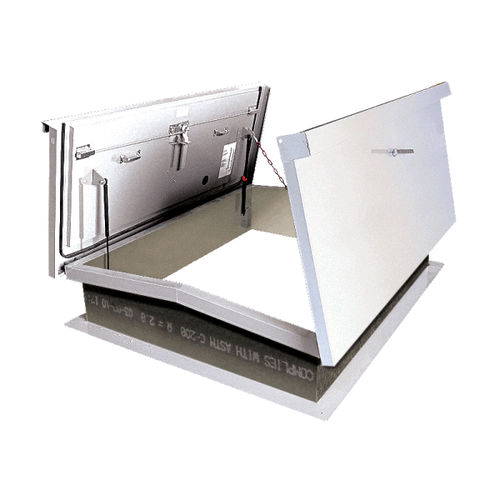

Roof hatch A6868

squarealuminumfor home automation systems

Application Acudor Equipment Access Roof Hatches are designed to provide convenient, economical access to the roof of a building where larger openings are required. This opening allows for equipment to be installed or removed from a building through the roof. Features RHA & RHG Weather tight construction Convenient one-hand operation 12" high insulated curb Supports 40lbs./sq. ft. live load Optional Features RHA Painted and Anodized finishes Galvanized steel curb and Aluminum cover Polycarbonate domes for daylighting Louvered Curbs Curb Mounted Units Curb pitch corrected for sloped roof Higher curb heights for "green roof" applications RHA Specifications: Cover: Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 11 gauge aluminum with a 20 gauge aluminum inside liner. Curb: 1/8" thick aluminum with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes. Hinge Pin: Heavy duty Aluminum pintle hinges with 3/8" pin Opening: Gas spring operators allow cover to open and close with ease. Inside pull handle allows for easy control when closing cover. Door Latch: Self latching, zinc plated outside T handle with stainless steel inside lock and lever assembly. Unit also has inside and outside padlock provisions. Finish: Mill finish.
