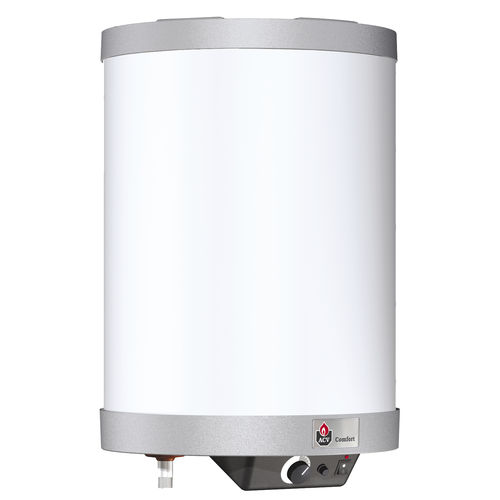

Electric water heater COMFORT E 100

free-standingverticalsanitary

BI-ENERGY tank to be installed vertically with sanitary connections down. Domestic stainless steel cylinder with Tank-in-Tank technology BI-ENERGY : fitted with a 2,2 kW electrical element in the primary circuit to avoid scalding Polyurethane foam insulation offers optimal energy performance Thick polypropylene jacket. Hard wearing and shock resistant 5 sizes: from 100 to 240 litres Anti-Legionella : Storage temperature > 60 °C Constructive characteristics Capacity (total) - 105 - L Capacity (primary) - 30 - L Weight (empty) - 37 - kg Max operating temperature - 90 - °C Max operating pressure heating (primary) - 3 - bar Max operating pressure (DHW) - 8,6 - bar Primary flow (EN 12897:2016) - 0,70 - L/s Primary heater pressure drop (EN12897:2016) - 19,6 - mbar Connection - primary - 1 F - Ø" Connection - DHW - 3/4 M - Ø" Connection - re-circulation / safety valve - NA - Ø" Heating characteristics Reheat time (EN 12897) - 10 - min Reheat performance (EN 12897:2016) - 18,4 - kW Electrical resistance - 2,2 - kW Max absorbed heat (Heat source: boiler) - 23 - kW Domestic hot water performance Peak flow at 40°C - 212 - L/10’ Peak flow 1st hour at 40°C - 705 - L/60’ Continuous flow at 40°C - 592 - L/h Peak flow at 45°C - 182 - L/10’ Peak flow 1st hour at 45°C - 604 - L/60’ Continuous flow at 45°C - 507 - L/h Peak flow at 60°C - 105 - L/10’ Peak flow 1st hour at 60°C - 345 - L/60’ Continuous flow at 60°C - 288 - L/h Coefficient (NL) - 1,0 - Electrical Characteristics Voltage - 230 - V
