Flexible LED light strip FLOW

Product overview

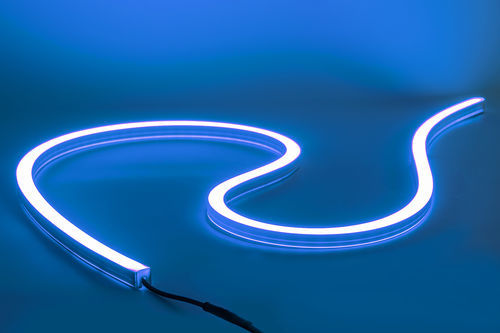

ADO Lights LED-Flow is a flexible LED profile for indoor and outdoor installations. It offers top, side and 3D bending variants with compact cross-sections and options for magnetic mounting and customized potting color. The product is designed for applications where a continuous, homogeneous light line and discreet fixing are required. Ongoing development includes a version that decouples light over three sides.

Features

• Suitable for public spaces, facades and entrance areas
• Top / Side / 3D bending options
• Accessible design for maintenance
• Integration possible from small installations to building automation systems
• Uniform light distribution
• Light colour: monochrome (white) or multicolour (RGB, RGB+W, Tuneable White)
• Optional magnetic mounting for concealed attachment

Technical details

• Dimensions: 16 × 16 mm (top/side bending) and 11 × 19 mm (side bending); max length 5000 mm; min bending radius > 60 mm
• Power consumption: 9.6 or 14.4 W/m (white); 14.4 W/m (RGB); 19.2 W/m (RGB+W); supply 24 VDC
• Luminaire luminous flux: up to 620 lm/m
• Lifetime: LED and driver 50,000 hours at 70% initial luminous flux
• Light colour options: 2700 / 3000 / 4000 K; RGB; RGB+W; Tuneable White
• CRI: > 80 / > 90 options
• Control: external driver (DMX 512 or DALI)
• Protection: IP68; connection cable with IP67 connector
• Certificates: CE, RoHS
• Materials: mix of clear and opaque PU resin; UV-resistant
• Mounting: surface mounting with clips and profiles; recessed mounting with profiles; magnetic mounting for high-design requirements
• Ambient temperature range: -25 °C to +50 °C
• Accessories: mounting profiles in aluminium or stainless steel; 3D bending capability

Applications & installation
LED-Flow is suitable for architectural accent lighting, façade outlining, entrance canopies, hospitality interiors and other projects requiring continuous light lines. Mounting options include surface or recessed profiles and magnetic fixtures for a minimal visible attachment. Specify potting color for visual accents when the luminaire is off. For integration with control systems, select compatible external drivers (DMX/DALI) and supply at 24 VDC.
