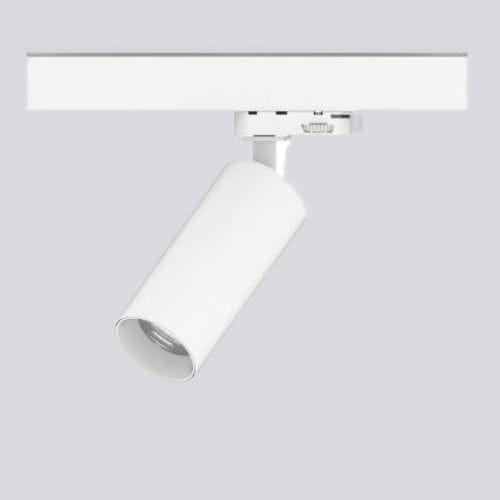

LED track light SEDNA

cylindricalaluminumfor office

Description
Adjustable LED track spotlight Sedna for retail, museums, showrooms and offices. Fits standard track systems and can be moved along the track; the luminaire head swivels for precise alignment when displays or layouts change. Available in multiple colour temperatures and housing finishes to integrate into architectural lighting schemes.

Features

• Designed for shops, museums, offices and showrooms
• Narrow colour tolerances for consistent light appearance
• Stepless dimming options available
• Optional colour rendering index > 90
• Two beam angles: 20° and 36°

Technical details
Dimensions [LxWxH]: Luminaire housing: Ø 58 x 130 mm; Adapter: 140 x 50 mm
Power consumption: 9.5 W
Luminous flux: max. 1250 lm
Light beam angle: 20° / 36°
Service life: LED 50,000 hours at 70% of mean luminous flux
Colour temperature: 2,700 K; 3,000 K; 4,000 K
Colour rendering index: CRI>80 (optional >90)
Control interface: With ballast (not dimmable) — options: Phase alignment; DALI; 1–10 V
IP rating: IP20 (indoor use)
Housing: Aluminium, powder-coated (white, black or grey)
Converter protections: Overload protection; Overtemperature protection; Short-circuit protection
Light calculation: EULUM-file available

Specifications

• Dimensions: Luminaire housing Ø 58 x 130 mm; Adapter 140 x 50 mm
• Power consumption: 9.5 W
• Luminous flux: max. 1250 lm
• Beam angle: 20° / 36°
• Service life: LED 50,000 hours at 70% of mean luminous flux
• Colour temperature: 2,700 K; 3,000 K; 4,000 K
• Colour rendering index: CRI>80 (optional >90)
• Control interface: With ballast (not dimmable) — options: Phase alignment, DALI, 1–10 V
• IP rating: IP20
• Housing: Aluminium, powder-coated (white, black or grey)
• Converter protections: Overload / Overtemperature / Short-circuit
• Light calculation: EULUM-file
