Built-in lighting profile LLF 12.30

embeddedrecessedLED

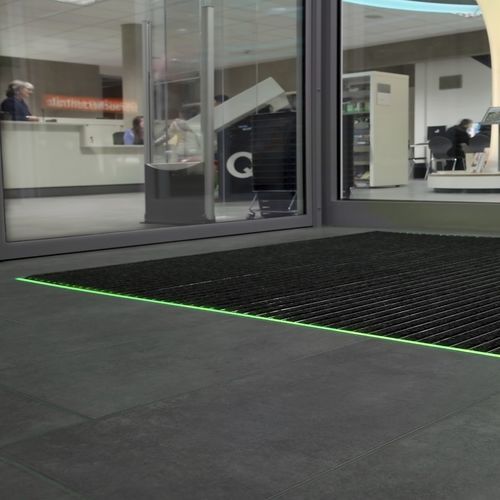

Entrance areas in the right light
Lighting frames from the LED-LightLine family provide discrete design and guiding illumination for entrance zones and dust-trap areas. The filigree, fully moulded profiles integrate with TTC door mats and can be combined with other manufacturers’ mats on request, offering uniform visual guidance and enhanced safety for pedestrian traffic.

Features & Applications

• Suitable for indoor and outdoor entrance zones
• Fully moulded recessed luminaire for flush installation
• Energy-efficient LED solution
• Flush mounted; can be built into wall and floor grids
• With appropriate sealing of connection points, suitable for submerged installation up to 3 m depth
• Light options: monochrome white or RGB/multicolor; controlled via controller or power supply to display static colours, mixed colours, gradients and dynamic scenes
• Control options range from user-friendly local control to integration into building automation
• Compatible with interfaces via ballast, e.g. DMX512, EIB, DALI

Technical Details
DIMENSIONS [W x H]: 12 x 30 mm | Rectangular profile; mat height 22 mm | other sizes on request
POWER CONSUMPTION: 7 W/m (white) | 7.5 W/m (RGB multicolor)
NOMINAL VOLTAGE: 24 VDC
SERVICE LIFE: LED and EVG 100,000 hours at 70% of mean luminous flux
COLOUR OPTIONS: Monochrome white or RGB multicolor
CONTROL INTERFACE: Compatible with any interface via ballast, e.g. DMX512, DALI, EIB
IP RATING: IP68 | Protection class III
CERTIFICATES: CE, RoHS
MATERIAL: Fully moulded aluminium; high-quality opaque polyurethane seal
OTHER: Operating ambient temperature –40 °C to +85 °C; connection cable with plug; angle/cover profile made of aluminium EN AW-6060 T66 natural anodised (other anodised colours on request); joint connector/corner 90° (other angles on request)
WEIGHT: 0.75 kg/m

Technical specifications

• Dimensions (W x H): 12 x 30 mm | Rectangular profile; mat height 22 mm; other sizes on request
• Power consumption: 7 W/m (white) | 7.5 W/m (RGB multicolor)
• Nominal voltage: 24 VDC
• Service life: LED and EVG 100,000 hours at 70% mean luminous flux
• Colour: Monochrome white or RGB multicolor
• Control interface: Compatible with DMX512, DALI, EIB and other interfaces (via ballast)
• IP rating: IP68; Protection class III
• Certificates: CE, RoHS
• Material: Fully moulded aluminium with high-quality opaque polyurethane seal
• Operating ambient temperature: –40 °C to +85 °C
• Connection: Connection cable with plug
• Profiles/angles: Angle/cover profile EN AW-6060 T66 natural anodised; joint connector/corner 90° (other angles on request)
• Weight: 0.75 kg/m
