Surface mounted spotlight LUC

LEDcylindricalIP54

Product description

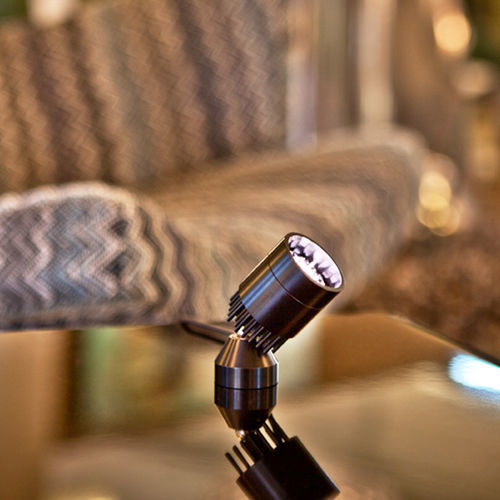

Compact LED mini spotlight designed for targeted illumination in architectural and exhibition environments. Luc MiniSpot attaches magnetically and can be pivoted to direct a precise beam without UV emission. Suitable for highlighting artworks, displays and detailed surfaces where accurate colour rendering and low thermal load are required.

Features

• High flexibility with multiple mounting and adjustment options
• Magnetic base for easy positioning
• Suitable for private residences, showrooms, churches, castles, museums, trade fairs, libraries and galleries
• Engineered to gently illuminate paintings, artworks and exhibits
• No UV components
• Low heat / reduced thermal load (minimising air-conditioning requirements)
• Excellent colour rendering (CRI > 90)
• Interchangeable lenses
• Outdoor version available with IP54 rating

Technical details
Dimensions [WxH] : Approx. 28 x 50 mm
Power consumption : 1–3 W | max. 700 mA
Operating voltage : Low voltage to 48V DC
Light beam angle : 10° / 25° / 50° freely swivelling on bullet magnet
Service life : LED 50,000 hours at 70% of mean luminous flux
Colour temperature : White | 2,600 / 3,000 / 3,500 / 4,000 Kelvin
Color rendering index : CRI > 90
Number of LEDs : 1
IP Rating : IP44 | optional IP54 for outdoor
Certificates : CE, RoHS
Luminaire housing with bullet magnet : Aluminium anodised; Aluminium black anodised; Aluminium vanished white RAL 9010
Attachments (optional) : Threads for screwing on · Honey comb mesh to optimise the dazzling effect · Tapered
Control interface : Static or digital dimmable converter, DALI
Weight : 0.08 kg
Light calculation : Light calculation (EULUM) available
Upon request : Project-related housings; Higher CRI; Tunable white and other light colours

Specifications / Technical specifications

• Dimensions [WxH]: Approx. 28 x 50 mm
• Power consumption: 1–3 W | max. 700 mA
• Operating voltage: Low voltage to 48V DC
• Light beam angle: 10° / 25° / 50° freely swivelling on bullet magnet
• Service life: LED 50,000 hours at 70% of mean luminous flux
• Colour temperature: 2,600 / 3,000 / 3,500 / 4,000 K
• CRI: > 90
• Number of LEDs: 1
• IP Rating: IP44 (optional IP54 for outdoor)
• Certificates: CE, RoHS
• Housing finishes: Aluminium anodised; Aluminium black anodised; Aluminium vanished white RAL 9010
• Optional attachments: Threads for screwing on; Honey comb mesh; Tapered
• Control: Static or digital dimmable converter, DALI
• Weight: 0.08 kg
• Options upon request: Project-related housings; Higher CRI; Tunable white and other light colours
