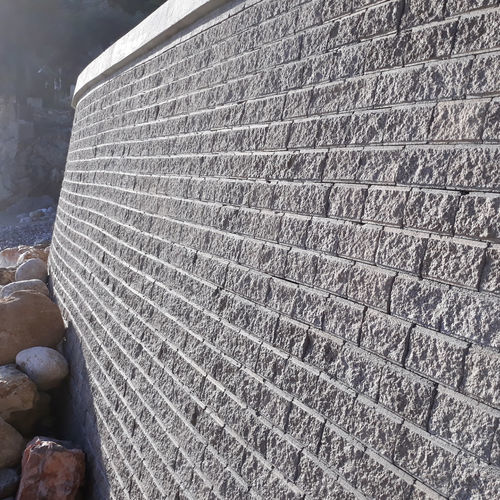

Solid concrete block BLOCK AFIWALL®

for retaining wallsacoustichigh-resistance

The construction of infrastructure sometimes requires working on very steep slopes. The AFIWALL® range offers various simple and rapid construction methods which provide a variety of solutions to complete these structures. For slope reinforcement, mechanically stabilised earth (MSE) retaining wall with vertical facing or facing at a slight angle, bridge abutments or acoustic bunds, the AFIWALL block technology is used whenever concrete facing is needed. This solution consists of three products: a specifically designed reinforcing geosynthetic such as NOTEX® C in the event of aggressive granular backfill upon installation or NOTEX® GX or GEOTER® F in most traditional cases a drainage geocomposite such as SOMTUBE® FTF to combat water ingress in the technical embankment modular concrete blocks such as BETOATLAS® or LEROMUR® Benefits Innovative and cost-effective solution consisting of 3 products supplied by AFITEXINOV for the reinforcement, drainage and lining of the structure Construction of very high retaining structures The modular concrete facing replaces the construction of traditional walls Quickly implemented Looks different depending on the type of modular block used Better integration into the landscape Characteristics BETOATLAS® block Weight of empty element : 24 kg Weight of full element : 50 kg Number of element per m2 : 20 Packaging : 2.40 m2/pallet Maximum height : 11 m LEROMUR® block Weight of elements :  100 cm module : 54 kg / 50 cm module : 27 kg / 25 cm module : 13 kg Packaging on pallets : 100 cm module : 24 / 50 cm module : 48 / 25 cm module : 96 Maximum height : 25 m
