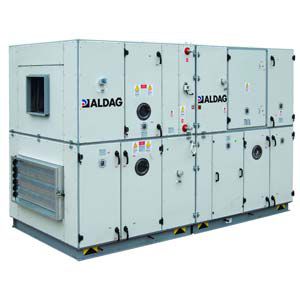

Commercial air handling unit ALDAPOOL

indoor

ALDAPOOL Dehumidifying AHUs are used for dehumidifying of indoor swimming pools with the aim of getting moisture and ensuring the desired temperatures according to the season conditions. (%50 to %55 Rh humidity at 28 °C swimming pool water temperature, 30 °C indoor air temperature) Specially produced in 8 different types and capacity for indoor swimming pools with a water surface area of 500 m2 from 50 m2. ALDAPOOL unit consists of exhaust fan, supply fan, heat recovery coil, dx cooling coil, hot water coil and electrical heater sections. Hermetic scroll compressors are used as standard to ensure the gradual provision of moisture removal and cooling cycle. Optionally, DC-Inverter compressors can be used. ALDAPOOL units are equipped with an automation system specially designed for the dehumidifying cycle. Thanks to this control system, the swimming pool area is automatically set to the desired conditions with the options of “Summer”, "Winter Night" and "Winter Day". The control logic is set totake fresh air according to fresh air enthalpy when suitable. The device is delivered as a whole package with electrical control panel installed on it. The casing construction of the unit is composed of galvanized steel profiles. Electrostatic powder painted panels and service doors are 50 mm rockwool insulated, Components (fan, motor, coils, filter case, etc.) are epoxy painted in order to be resistant to chlorine (Designed and manufactured in accordance with the conditions of DIN 1886.)
