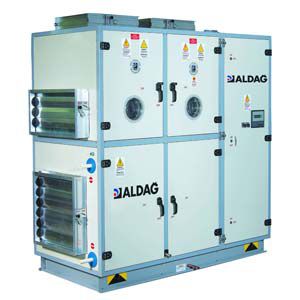

Commercial air handling unit ALDAMED

for clean rooms

All hospitals and clean rooms should be compatible with hygienic standards as known. It is not possible to create a hygienic environment in places where there is no climatization and ventilation because of production of particles and micro organisms within the environment. Aldamed Hygienic Type Dx HVACunits are specially designed for the health care industry and clean room applications. Operating rooms, intensive care rooms, clean rooms, biotechnical laboratories, pharmaceutical and chemical industry, food industry, beverage industry, data centers, sterilization rooms should becompatible to hygienic conditions and potential application fields. Fresh air is filtered against dust, microorganisms, odor and anesthetic gases in order to be compatible with hygienic standards.At the same time with air quality, the parameters of the area such as temperature, humidity, positive & negative pressure are kept under control. The Aldamed units are manu factured as standard with 2 different types in 3 different capacities in the range of 2,500 - 7,500 m3/h airflow. Electrostatic powder painted steel profiles constitute the main frame. The interior skin of double skin decorative panels ismanufactured from 304 quality stainless steel sheet metal suitable for hygienic conditions. The exterior surfaces are made up of galvanized sheet metal painted with electrostatic powder paint and the panels are insulated with 50 mm thick rockwool. Sealing on panels and service doors is provided with specially manufactured hygienic seal. There are no sharp corners on the inside surfaces of the device to hold dust and dirt.
