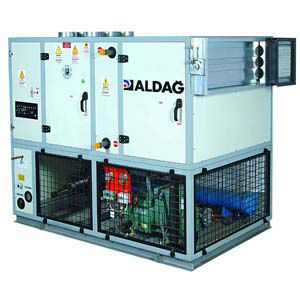

Commercial air handling unit MAC

industrialcompact

Designed for climatization of large spaces in ships, captain's mansions, cabins and machine rooms.These compact units are composed of fresh air damper, hermetic or scroll compressor, front curve bladed radial belt driven fan, electricaland control panel. These units are designed with seawater shell & tube type condensers which have openable cap for ease of cleaning against seawater.Regulation valve, strainer, flow switch, closing valves and flexible compensator are the key componentswhich allow the system to work with maximum efficiency against seawater temperature changes. Thanks to the innovative designed drain pan that in the case of rolling, no leakage of drain water from the drain pan. Double skin, electrostatic powder painted galvanized sheet metal panels, resistant to corrosive sea conditions and strikes.In order to adjust fresh air mix ratio,mixing damper mechanism and filter system are available on the units. Against seawater corrosion, co İngilizce çevirisi. pper tube, gold eloxal coated aluminum laminated fin. İngilizce çevirisi. The marine type semi-hermetic or hermetic compressor is installed with steel profiles on a shell & tube type condenser as compressor-condenser assembly. Condenser pipes are Cu-Ni pipes that are resistant to seawater. Condenser pipes can be easily cleaned through openable caps. It has a double liquid discharge so that it is not affected by the wobble and trim. In order to ensure the regular operation of the system, the electrical board with bronze cable nozzle has been designed with the necessary main fuse, contactors and thermal switches.
