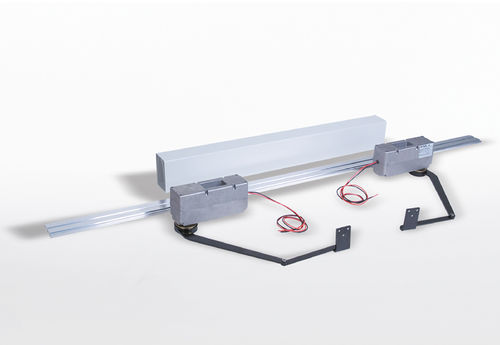

Shutter operator BUONGIORNO

swing

Product overview
Electromechanical operator for side-hinged shutters. Usable with windows fitted with security grates and mosquito screens. Consists of an aluminium beam supporting the gear motor (two motors for two-wing applications) and a PVC guard designed for in-line installation without modifying existing shutters or masonry work.

Key features

• Reliable electromechanical drive with adjustable beam length for varied shutter sizes.
• Compatible with side-hinged shutters, security grates and mosquito screens.
• Beam and PVC guard can be cut to size on site.
• Installation without alteration to the existing shutter or masonry.
• Allows opening/closing shutters independently of the window (useful for winter, summer and hard-to-reach windows).
• Electronic clutch monitors current absorption; movement stops on obstruction to protect the user and the motor.
• No limit stop adjustments required during installation.
• Manual operation possible in case of mains failure without unlocking the system.
• Optional electric lock available for enhanced security.

TECHNICAL DATA
POWER SUPPLY: 230 Vca
MOTOR POWER SUPPLY: 24 Vcc
MOTOR POWER: 4.2 W
MAX. NOMINAL TORQUE: 40 Nm
ELECTRIC LOCK: Internal
CLUTCH: Mechanical
OPERATING TIME: 18 sec. for 180°

INSTALLATION DATA
1 WING / 2 WING
MIN. WINDOW WIDTH: 43 cm / 86 cm
MAX. WINDOW WIDTH: 80 cm / 155 cm
MAX. WING AREA: 1.8 m2 / 1.75 m2 x 2
MAX. WING WEIGHT: 80 kg / 50 kg x 2

Technical specifications

• Power supply: 230 Vca
• Motor power supply: 24 Vcc
• Motor power: 4.2 W
• Maximum nominal torque: 40 Nm
• Electric lock: internal (optional)
• Clutch: mechanical with electronic current-sensing behaviour
• Operating time: 18 sec for 180°
• Minimum window width (1 wing): 43 cm
• Maximum window width (1 wing): 80 cm
• Minimum window width (2 wing): 86 cm
• Maximum window width (2 wing): 155 cm
• Maximum wing area (1 wing): 1.8 m2
• Maximum wing area (2 wing): 1.75 m2 x 2
• Maximum wing weight (1 wing): 80 kg
• Maximum wing weight (2 wing): 50 kg x 2
