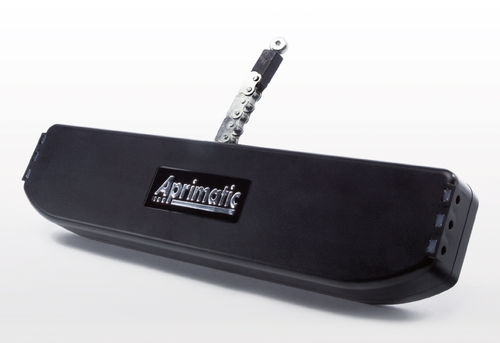

Window operator O2M

modular

Product overview
Electromechanical operator for windows with double chain, suitable for outward-opening windows, bottom-hinged windows and roof domes. Model codes: 43492/001-002-003.

Key features

• Compact, modular electromechanical design for integration with different window frames.
• Adjustable fixing device allows installers to position the operator precisely on the frame.
• Double chain transmission with high thrust/traction capability for moving heavy windows.
• Built-in control logic automatically recalibrates the closing point every 50 opening/closing cycles to maintain thermal and acoustic performance.
• Protection degree IP54 for use in applications exposed to atmospheric agents.
• Reduced dimensions for installation regardless of frame thickness or profile.

Technical data
POWER SUPPLY: 24 Vdc
ABSORBED POWER: 50 W
ABSORBED CURRENT: 2 A
THRUST FORCE: 350 N (stroke 150 mm) / 250 N (stroke 250 mm) / 100 N (stroke 380 mm)
TRACTION FORCE: 350 N
ADJUSTABLE STROKES: 150 mm, 250 mm, 380 mm, special stroke (0÷380 mm)
SHIFTING SPEED: 24 mm/s
OPERATING TEMPERATURE: -5° to +55° C
FRONT ADJUSTMENT: max. 10 mm
PARALLEL CONNECTION / EYES (max 1 operator per window): YES
OVERLOAD PROTECTION: 100° C
DIMENSIONS: (LxHxP) 340x40x80 mm
LIMITS OF USE: non-intensive (continuous operation MAX 4 min)
PROTECTION DEGREE: IP54
OPERATOR WEIGHT: 1.2 Kg

• Power supply: 24 Vdc
• Absorbed power: 50 W
• Absorbed current: 2 A
• Thrust/traction force: up to 350 N (varies with stroke)
• Adjustable strokes: 150 / 250 / 380 mm (special 0÷380 mm)
• Shifting speed: 24 mm/s
• Operating temperature range: -5° to +55° C
• Front adjustment: maximum 10 mm
• Parallel connection supported (max 1 operator per window)
• Overload protection temperature: 100° C
• Dimensions (LxHxP): 340 x 40 x 80 mm
• Intended use: non-intensive (continuous operation max 4 minutes)
• Protection degree: IP54
• Operator weight: 1.2 Kg
