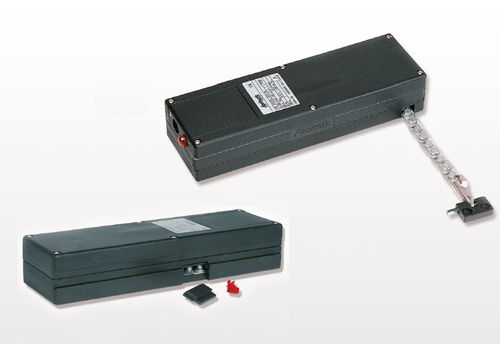

Window operator APRICOLOR VARIA

swing

Product overview
Electromechanical chain operator designed for bottom-hinged and outward-opening windows. Apricolor VARIA features an exclusive quick-fit system for secure frame mounting and an internal nylon chain magazine. Stroke is adjustable from 90 to 400 mm; VARIA T allows twin mounting on wide windows.

Applications

• Bottom-hinged (projecting) windows
• Outward-opening windows
• VARIA T: twin mounting for single windows wider than 1600 mm

Main features

• Exclusive quick-fit system for direct frame attachment
• Electromechanical chain operator with internal nylon magazine
• Adjustable stroke: 90–400 mm
• Operates at 230 VAC and 24 VDC; units can be connected in parallel
• Dacro-met coated chain for corrosion resistance
• VARIA T: shared overload protection between two parallel-connected operators
• Overload protection stops both units if one trips to prevent frame torsion

Technical data

• Power supply: 230 VAC - 24 VDC
• Absorbed power: 150 W - 40 W
• Absorbed current: 0.8 A (AC) / 1.8 A (DC)
• Thrust force: 150 N
• Traction force: 300 N
• Adjustable stroke: 90–400 mm
• Shifting speed: 40 mm/s
• Front adjustment: max. 10 mm
• Parallel connection: yes
• Overload protection: 100 °C (230 V versions)
• Capacitor: 4 μF
• Built-in relay, light indicator, removable terminal board
• Protection degree: IP20
• Operator weight: 1.7 kg
