Thermal-acoustic insulation IKO ENERTHERM MG

polyisocyanurate (PIR) foampanelfor roof

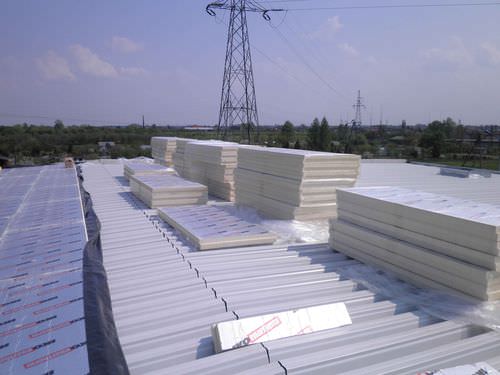

λD = 0.027 - 0.028 W/m.K. For good fire resistance characteristics, for mechanically attached systems and (cold) adhered systems, coated on both sides with a mineral-coated glass film. IKO Enertherm MG is a 100 % CFC-free insulation board with a core in hard polyisocyanurate foam, coated on both sides with perforated mineral-coated glass facer. Application The insulation board is applied as a thermal insulation layer for warm roofs in combination with: A partially self-adhesive bituminous substrate A mechanically fixed waterproofing system, bituminous or plastic, 1 or 2 layers A loose-laid, ballasted waterproofing system, bituminous or plastic Bituminous membrane with bituminous roofing adhesive Attaching insulation Mechanically fixed to the surface (at least 4 pieces for sheets: 1 attachment at every corner) Applied with hot bitumen 110/30 or 85/25, approx. 1.5 kg/m² (calculation value for wind resistance 3000 Pa) Partially adhered with PU roofing adhesive Thermal performance: Lambda value (EN 13165) = 0.028 W/mK for thicknesses < 80 mm Lambda value (EN 13165) = 0.027 W/mK for thicknesses ≥ 80 mm
