APPLICATION

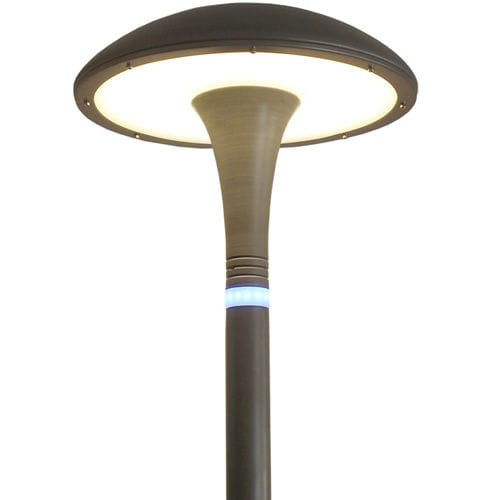

LED high-performance urban lights with wide beam light distribution.
PRODUCT DESCRIPTION
Urban lights made of aluminium alloy,
Aluminium and stainless steel.
Clear 5mm policarbon glass
Silicon rubber gasket
Mounting bracket made of steel with
electrostatic powder coating.
Colour standard MT-X6-23
optional RAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP65
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,18 m²
Weight: 7,3 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
- Conformity mark.
LAMPS
Module connected wattage 50W
Luminaire connected wattage 60W
Ambient température ta max = 55 °C
NW
Module désignation 00R00500NC-120
Luminaire luminous efficiency 152 Im / W WW
Module désignation 00R00500NC-120
Luminaire luminous efficiency 145 Im / W
Standard colour température 4000K
Also available with 3000K on request.
Standard pôle height 3 meter + head Optional pôle lenght : 3,5 / 4 meter + head
Colour température
Colour rendering index Module luminous flux Luminaire luminous flux
4000K Ra>80 8850Im 7616 Im
Colour température
Colour rendering index Module luminous flux Luminaire luminous flux
3000K Ra>80 8320Im 7238 Im
DECORATIVE BLUE RING IS OPTIONAL
