APPLICATION
LED high-performance urban lights with Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION

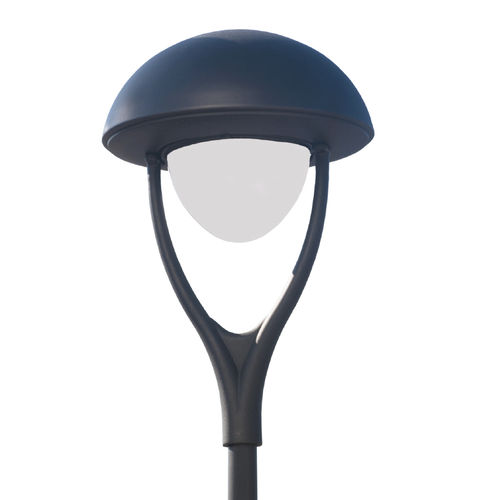

Urban Light made of aluminium die cast,
Body pole steel with electro galvanized
Clear 5mm safety glass
Silicon rubber gasket
Mounting detail anchor system
Mounting bracket made of steel
Colour standard MT-X6-23
All RAL Codes or
Special architectural paints
Lens angle40°-60°-90°
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenghtIK08
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
- Conformity mark.
LAMPS
Module connected wattage 60W
Luminaire connected wattage 75W
Ambient température ta max = 55 °C
NW
Colour température 4000K
Colour rendering index Ra>80
Luminaire luminous flux 7790 Im
Luminaire luminous efficiency 130 Im / W
WW
Colour température 3000K
Colour rendering index Ra>80
Luminaire luminous flux 7403 Im
Luminaire luminous efficiency 123 Im/W
Standard colour température 4000K
Also available with 3000K on request.
Standard pôle length: 4 meter
