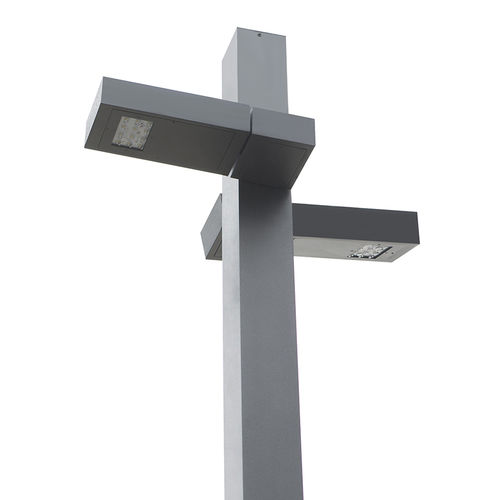

Urban lamp post BLOCCO

contemporaryaluminumglass

APPLICATION LED high-performance urban lights with Wide & Asymmetric Beam light distribution PRODUCT DESCRIPTION Urban lights made of aluminium, Body pole aluminium profile Diffuser5mm policarbon glass Silicon rubber gasket Mounting detail anchor system Eliptical shaped asymmetrical lenses All RAL Codes or Special architectural paints LED power supply unit Input170 –240V AC 50 / 60 Hz Power factor > 90% full load 6kV surge protection DALI controllable (optional) 0-10V / 1-10V controllable (optional) Safety class II Protection class IP65 Operation temperature -25°C / +55°C EULUMDAT files available Complies with European standards EN 60598 and CE certificate. - Conformity mark. LAMPS Module connected wattage 80W Luminaire connected wattage 100W Ambient température ta max = 55 °C NW Colour température 4000K Colour rendering index Ra>80 Luminaire luminous flux 10387 Im Luminaire luminous efficiency 130 Im / W WW Colour température 3000K Colour rendering index Ra>80 Luminaire luminous flux 9871 Im Luminaire luminous efficiency 123 Im/W Standard colour température 4000K Also available with 3000K on request. Standard pôle length: 4 meter Optional pôle lenght: 5 meter
