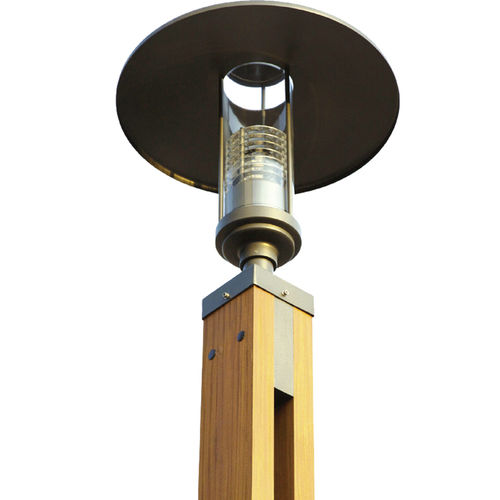

Urban lamp post LUCUS

contemporaryaluminumLED

APPLICATION LED high-performance urban lights with Wide & Asymmetric Beam light distribution PRODUCT DESCRIPTION Urban lights made of aluminium, Body egzotic wood Louver highest grade aluminium, polished and anodised Surface Treatment 3 layers of varnish resist to external factors is applied. Diffuser5mm policarbon glass Silicon rubber gasket Mounting detail anchor system Base and Bracket manufactured from steel LED power supply unit Input170 –240V AC 50 / 60 Hz Power factor > 90% full load 6kV surge protection DALI controllable (optional) 0-10V / 1-10V controllable (optional) Safety class II Protection class IP65 Operation temperature -25°C / +55°C EULUMDAT files available Complies with European standards EN 60598 and CE certificate. - Conformity mark. LAMPS Module connected wattage 150W Luminaire connected wattage 180W Ambient température ta max = 55 °C NW Colour température 4000K Colour rendering index Ra>80 Luminaire luminous flux 13950 Im Luminaire luminous efficiency 93 Im / W WW Colour température 3000K Colour rendering index Ra>80 Luminaire luminous flux 13050 Im Luminaire luminous efficiency 87 Im / W Standard colour température 4000K Also available with 3000K on request. Standard pôle length: 5 meter
