APPLICATION

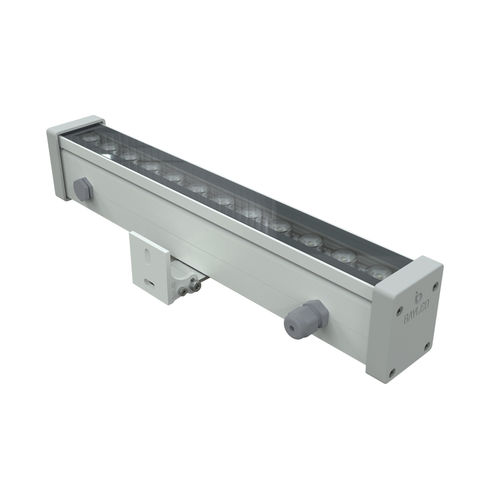

LED high-performance wallwashers with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
polyamide and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 30°
Mounting bracket made of plastic.
Lens angles:
Multi Lens (linear): 17° - 25° - 35° - 20°x45°(asym.)
Single Lens: 12° - 60° - 90°17°, 25°, (45°x20°), 35°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 110 – 240V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,02 m²
Weight: 0,7 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
- Conformity mark.
LAMPS
Module connected wattage 12W
Luminaire connected wattage 15W
Ambient température ta max = 55 °C
NW
Module désignation 15L20230NC-12
Colour température 4000K
Colour rendering index Ra>80
Module luminous flux 1815 1m
Luminaire luminous flux 1706 1m
Luminaire luminous efficiency 142 Im / W
WW
Module désignation 15L20230NC-12
Colour température 3000K
Colour rendering index Ra>80
Module luminous flux 1725 Im
Luminaire luminous flux 16211m
Luminaire luminous efficiency 135 Im / W
Standard colour température 4000K
Also available with 3000K on request.
