APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.
PRODUCT DESCRIPTION

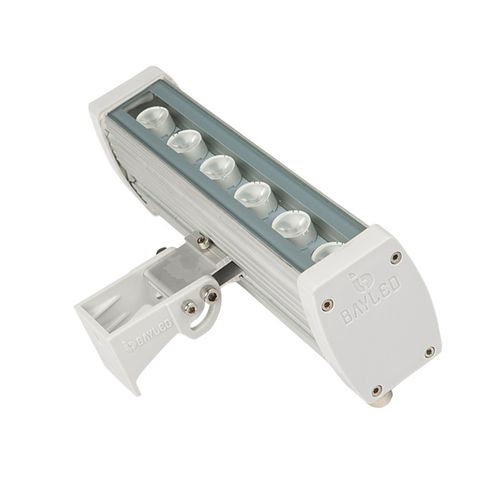

Wallwasher made of aluminium extrusion,
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 95°
Mounting bracket made of plastic.
Lens angle 8°- 25°- 45°- 60°- 10°x45°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 110 – 240V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,08 m²
Weight: 0,95 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.
LAMPS
Module connected wattage 6W
Luminaire connected wattage 10W
Ambient température ta max = 55 °C
NW
Module désignation 15L20230NC-6
Colour température 4000K
Colour rendering index Ra>80
Module luminous flux 941 Im
Luminaire luminous flux 884lm
Luminaire luminous efficiency 146 Im / W
WW
Module désignation 15L20230NC-6
Colour température 3000K
Colour rendering index Ra>80
Module luminous flux 894 Im
Luminaire luminous flux 840 Im
Luminaire luminous efficiency 139 Im / W
Standard colour température 4000K
Also available with 3000K on request.
