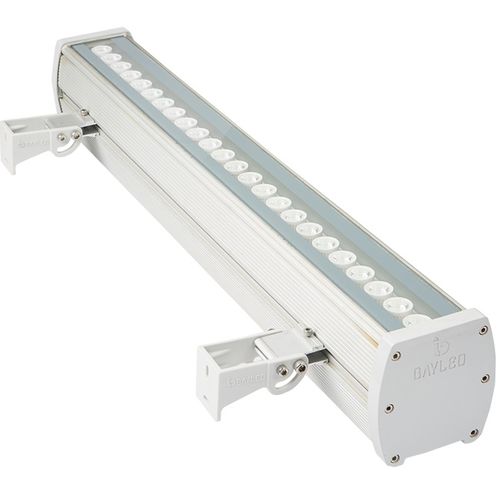

IP66 floodlight VEGA RGBW(A)

RGBW LEDcommercialoutdoor

APPLICATION LED high-performance wallwashers with wide & narrow beam light distribution. PRODUCT DESCRIPTION LED wall washing fixture with intelligent white and color light. Fixture made of aluminium alloy, Aluminium and stainless steel. Clear 5mm safety glass Silicon rubber gasket Swivel range 95° Mounting bracket made of plastic. Lens angle 8°- 25°- 45°- 60°- 10°x45° Colour standard . Mat anodizied optional RAL codes. LED power supply unit Input 110 – 240V AC 50 / 60 Hz Power factor > 90% full load DMX 512 controllable. Safety class I Protection class IP66 Impact strenght IK08 Operation temperature -25°C / +55°C Wind catching area: 0,14 m² Complies with European standards EN 60598 and CE certificate. - Conformity mark. LAMPS Module connected wattage 12W Luminaire connected wattage 18W Ambient température ta max = 55 °C FEATURES Color-changing and high-quality white light from the same fixture. VEGA is an advanced approach to color mixing that enables high-quality intelligent color. Multiple channels of LED lightsoures combine to produce a full spectrum of precisely controllable light, including miilons of saturated colors, pastels and uniform white light with CRI of greater than 85 in 2700K - 4000K range. DMX 512 Interface : Data Enabler (DMX/Bayled) Adress method: Digital Fixture Connections : male/female XLR DALI -0-1OV Interface : Contrôlable driver. Control method : Analog with cable. Fixture Connections : With cable FIXTURE RUN LENGHTS To calculate fixture run lenghts and total power consumption foryour spécifie installation, please ask to company assistant.
