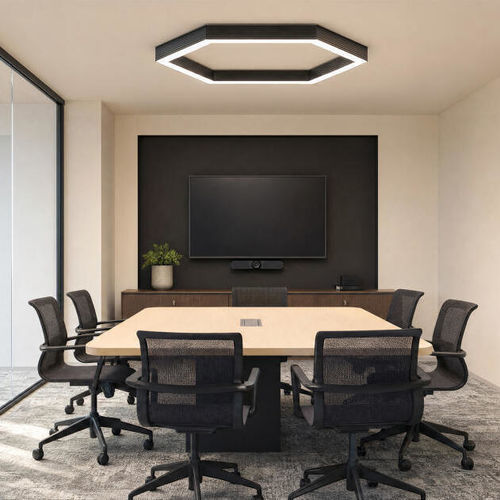

Hanging light fixture BLHC

surface-mountedLEDhexagonal

Product Overview
BELLOWS SHAPES extends the BELLOWS linear family with triangular and hexagonal 2.5" aperture luminaires that create architectural rhythm and act as ceiling focal elements. The pleated profile references the classic bellows form while offering a compact 2.5" opening. BELLOWS HEXAGON and BELLOWS TRIANGLE feature diffused lenses for smooth, uniform illumination. Available optical distributions include Diffused, Batwing and Extra-Wide Batwing. Multiple lumen packages, high-efficacy performance, BIOS circadian integration, PoE capability, tunable white (2700–6500K) and a wide selection of finishes are offered to suit design and performance requirements.

Available Luminaires / Mountings

• Triangle Pendant (SKU BLTP)
• Triangle Surface (SKU BLTC)
• Hexagon Pendant (SKU BLHP)
• Hexagon Surface (SKU BLHC)

Optical Distributions

• Direct: Diffused
• Indirect: Batwing (UD1), Diffused (UD2), Extra Wide Batwing (UD4)

Light Output Options

• Direct lumen packages shown in lm/ft (examples on page): 200 lm/ft, 400 lm/ft, 600 lm/ft, 800 lm/ft, 1000 lm/ft, 1200 lm/ft, 1400 lm/ft, 1650 lm/ft
• Indirect lumen packages available up to 1400 lm/ft

Finish & Canopy Options
Multiple textured metallic and wood-grain finishes available including White - Textured, Black Metallic - Textured, Silver Metallic - Textured, Gold Metallic - Textured, Wood grain (Light Cherry, Dark Walnut, White Oak), Midnight Blue Metallic, Copper Metallic, Charcoal Metallic, Bronze Metallic, Champagne Metallic, Red Metallic, etc.

Gallery & Media
Product imagery and a product video illustrate Triangle and Hexagon configurations and typical installed conditions.

Downloads
Specification sheet, Brochure, IES and LDT files, BIM files, PoE details, BIOS documentation, Dimensional diagrams, Product images, Declare, Performance data, Linear length configurations and use-case scenarios are available for download.

Technical specifications

• Body: Aluminum.
• Finish: Powder coated.
• Suspension: Steel cables (for pendant models).
• Power cable: Silver braided.
• Lens: Opal acrylic lens.
• Drivers: HPF electronic drivers for 120–277V, 347V (EU-240V). Driver integral to fixture housing.
• PoE: Optionally integrable via Power over Ethernet.
• BIOS: Circadian lighting integration available.
• Tunable White: 2700K–6500K.
• Delivered lumens: Values based on 4000K, CRI 80+ (depend on lumen package selected).
• Mechanical: Luminaires mount directly over J-box (by others).
• Integral Emergency System (E1): Optional 1.5 hour (3 hours EU) emergency system; self-contained inverter, NiCad batteries, LED charge indicator and test switch (NA only). Not available with 347V supply. Details vary by region and configuration.
• Reported L70 @25°C (77°F): > 60,000 hrs @ 2000 lumens/ft (6000 lumens/m).
• Estimated L70 @25°C (77°F): > 165,000 hrs @ 2000 lumens/ft (6000 lumens/m).
• Approvals: ETL, CE and others as listed; product is damp-rated for specified mounting conditions.
• Design: US Design Patent Pending.
• Seismic bracing: Kits available to meet compliance requirements.
• Sustainability / Maintenance: Designed for on-site LED board, driver and optic replacement; maintenance documentation provided.
