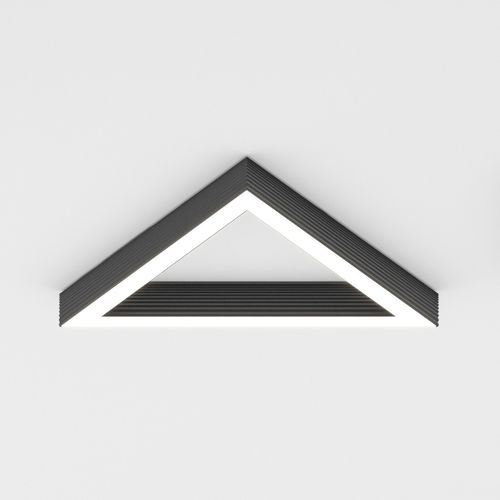

Surface-mounted light fixture BLTC

LEDtriangularIP20

Product overview
BELLOWS SHAPES adapts the BELLOWS linear family into closed geometric forms—BELLOWS TRIANGLE and BELLOWS HEXAGON—to introduce rhythm, depth and a sculptural ceiling presence. The 2.5" aperture luminaire features the pleated BELLOWS profile and delivers smooth, uniform illumination through diffused lenses. Available optical distributions include Diffused, Batwing (UD1) and Extra-Wide Batwing (UD4), supporting a wide range of architectural lighting layouts.

Key features

• Shapes: BELLOWS TRIANGLE and BELLOWS HEXAGON.
• 2.5" aperture luminaire with signature pleated profile.
• Optics/distributions: Diffused, Batwing (UD1), Extra‑Wide Batwing (UD4).
• Multiple lumen packages; delivered lumens and LPW specified at 4000K, CRI 80+.
• BIOS integration available for circadian-supportive lighting control.
• Power over Ethernet (PoE) connectivity option.
• Tunable White available (2700K–6500K).
• Thirteen finishes including textured metallics and wood-grain options.

Applications and mechanical
Designed for suspended or surface-mounted installation as an architectural ceiling element. Fixtures mount directly over a standard J-box (provided by others). Seismic bracing kits available to meet local code requirements. Rated for damp locations (indoor use). US design patent pending.

Documentation and downloads
Specification sheet, product brochure, IES/LDT files, BIM models, dimensional diagrams and performance data are available in the product downloads section. Download types include spec sheet, brochure, IES/LDT, BIM, PoE, BIOS documentation, dimensional diagrams and performance data.
