Contemporary ceiling light BLRC

ring-shapedpolycarbonatealuminum

Product Overview

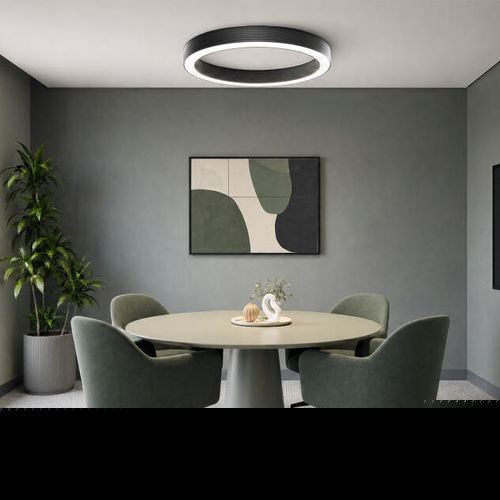

BELLOWS RING takes the standard ring luminaire and further enhances the aesthetic with its sculptural pleated form, introducing rhythm, depth and character to the ceiling plane. Inspired by the ridged profile of fireplace bellows, this 2.5" aperture pendant luminaire combines a strong architectural presence with reliable, serviceable performance. The diffused opal lens produces smooth, uniform illumination suitable for a wide range of interior applications. Multiple lumen packages, high‑efficacy options, BIOS circadian integration, PoE connectivity and 13 finish choices provide specification flexibility for architectural projects.

Highlights

• Sculptural pleated ring form
• 2.5" aperture
• Diffused opal lens for smooth, uniform illumination
• Multiple lumen packages and high‑efficacy performance
• BIOS integration for circadian support
• Available in 13 finishes

Tech Specs (summary)

• Body: Aluminum
• Finish: Powder coat (13 finishes referenced)
• Aperture: 2.5" (64 mm)
• Lens / Diffuser: Opal polycarbonate; protruding lens 0.08" (2.1 mm)
• Suspension: Steel cables; recommended minimum mounting height 1 ft (305 mm)
• Power options: Standard mains drivers 120–277V (EU‑240V option where applicable); PoE integration available
• Drivers: Remote HPF electronic drivers for dimming; maximum remote driver distances — 18 AWG = 40' (12.2 m); 16 AWG = 60' (18.3 m); 14 AWG = 90' (27.4 m)
• Emergency: Remote Emergency System option — 1.5 hr standard, 3 hr EU variant
• Mechanical: Mounts over standard J‑box (by others)
• Performance: Delivered lumens & LPW based on 4000K (minimum 80 CRI)
• L70 @ 25°C: > 102,000 hrs
• Approvals: Damp rated (indoor); ETL; CE; grounding marking; suitability for mounting on flammable surfaces; IP20 where indicated
• Seismic: Bracing kits available for compliance
• Sustainability: Designed for on‑site LED board, driver and optic replacement to ease maintenance

Characteristics / Technical specifications

• Model: Bellows Ring
• Body material: Aluminum
• Finish: Powder coat (13 finishes available)
• Aperture: 2.5" (64 mm)
• Diffuser: Opal polycarbonate (protruding lens 0.08" / 2.1 mm)
• Mounting / Suspension: Steel cables; recommended minimum mounting height 1 ft (305 mm)
• Power options: Mains drivers 120–277V (EU‑240V where applicable); PoE integration
• Drivers: Remote HPF electronic drivers; remote wire length limits specified
• Emergency: Remote emergency system option (1.5 hr standard; 3 hr EU)
• Performance: Multiple lumen packages; delivered lumens & LPW at 4000K, min 80 CRI
• L70 (25°C): > 102,000 hrs
• Approvals / Ratings: Damp rated; ETL; CE; grounding; suitability for flammable surfaces; IP20 as indicated
• Design status: US Design Patent Pending
• Maintenance: On‑site LED board, driver and optic replacement for reduced waste
