Hanging light fixture BLRP

LEDroundIP20

Product Overview

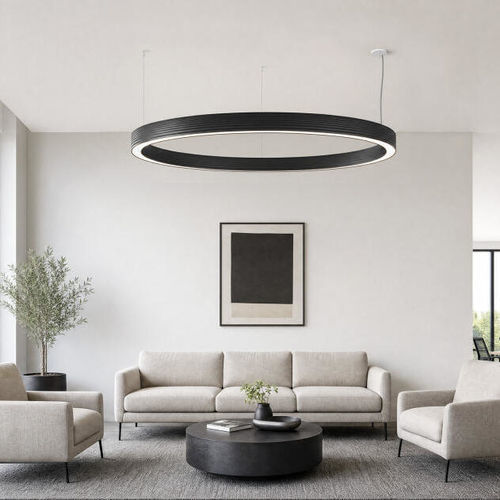

BELLOWS RING is a suspended ring luminaire with a sculptural pleated profile that adds rhythm and depth to ceiling planes. Designed for architectural and commercial lighting applications, it features a 2.5" aperture, diffused protruding opal lens and multiple lumen packages. Options include BIOS circadian integration, Power over Ethernet (PoE), remote emergency system (E2), and 13 powder-coated finishes.

Body
Aluminum.

Finish
Powder coated (13 finishes available).

Suspension
Steel cables. Recommended minimum mounting height: 1 ft (305 mm).

Lens
Opal polycarbonate (diffused, protruding lens design).

Remote Emergency System (E2)
Provides 1.5 hour (North America) / 3 hour (EU) emergency lighting with remote inverter module, NiCad batteries, LED charge indicator and test switch (LED indicator/test switch North America only). Maximum wall/ceiling plate to luminaire distance: 15' (4.5 m). Not available with 347 V supply.

Drivers
Remote HPF electronic drivers for 120–277 V (EU: 240 V) dimming. Drivers must remain accessible after installation. Typical maximum remote wire distances: 18 AWG — 40' (12.2 m); 16 AWG — 60' (18.3 m); 14 AWG — 90' (27.4 m).

PoE
Unit supports integration into data networks via Power over Ethernet (PoE).

Mechanical
Designed to mount directly over J-box (by others) in North America. Power cable option: silver braided.

Performance & Lifetime
L70 @ 25°C: > 102,000 hrs. Delivered lumens and LPW are based on 4000 K (minimum 80 CRI). Available delivered lumen range: approximately 3,300 to 37,700 lm depending on configuration.

Approvals & Certifications
Damp rated for indoor use. Icons/approvals include ETL, CE, grounding, suitability for mounting on flammable surfaces, and IP20. Product marked Made in Canada.

Design & Compliance
US design patent pending. Seismic bracing kits available to meet compliance requirements.

Technical specifications

• Model: Bellows Ring
• Body material: Aluminum
• Finish: Powder coated (13 finishes available)
• Aperture: 2.5"
• Lens: Opal polycarbonate (protruding diffused lens)
• Suspension: Steel cables; recommended minimum mounting height 1 ft (305 mm)
• Power cable: Silver braided
• Drivers: Remote HPF electronic drivers for 120–277 V (EU: 240 V) dimming; drivers must be accessible after installation; supported remote wire lengths: 18 AWG — 40' (12.2 m), 16 AWG — 60' (18.3 m), 14 AWG — 90' (27.4 m)
• Emergency (Remote E2): 1.5 hr (NA) / 3 hr (EU) emergency facility; inverter module and NiCad batteries included in remote system; max wall/ceiling plate to luminaire distance 15' (4.5 m)
• PoE: Power over Ethernet connectivity supported
• L70 @25°C: > 102,000 hrs
• Delivered lumens: configuration-dependent; typical range ~3,300–37,700 lm (based on 4000 K, min 80 CRI)
• Approvals: Damp rated, ETL, CE, grounding, mounting on flammable surfaces suitability, IP20
• Design: US design patent pending
• Seismic: Bracing kits available
