Aluminum joist E-BRS series

for raised floorsfor patiodurable

Product overview

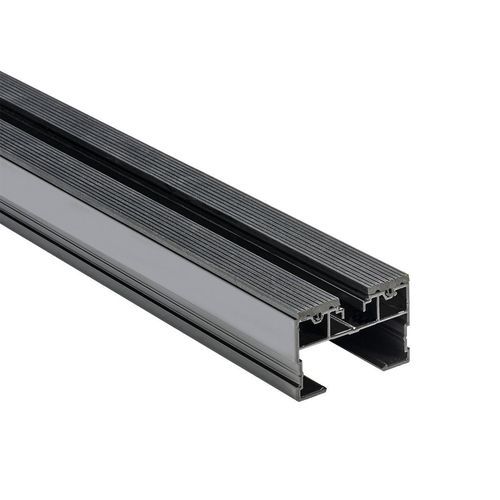

Supply and installation of an aluminium joist (rail) E-BRS with factory-fitted EPDM shock-absorbing joints. The joist includes drainage holes for rapid water evacuation and visible markings to indicate the exact position of pedestals, eliminating on-site measurements. EPDM seals are mechanically fixed (not glued) and specified at 70° Shore.

Variants

• E-BRS-27 — 27 mm aluminium (internal code: 21 3286)
• E-BRS-27-B — 27 mm anodised black (internal code: 21 3285)
• E-BRS-41 — 41 mm aluminium (internal code: 21 3287)
• E-BRS-41-B — 41 mm anodised black (internal code: 21 3288)

Advantages

• Suitable for large-format pavers and tiled terraces on joists.
• Allows for a controlled overhang (cantilever) to simplify finishing and save installation time.
• Straight, factory-cut rails facilitate levelling and reduce on-site adjustments.
• Factory-installed EPDM joints improve long-term vibration damping and weather resistance.

Downloads

• Installation Guide E-BRS
• Technical Data Sheet E-BRS-27 / E-BRS-27-B
• Technical Data Sheet E-BRS-41 / E-BRS-41-B

Technical specifications

• Material: Aluminium (joist)
• Seals: EPDM, mechanically fixed (not glued)
• EPDM hardness: 70° Shore
• Drainage: Joist with integrated holes for rapid water evacuation
• Pedestal marking: Joist marked to indicate exact pedestal position (no measurements required)
• Available heights: 27 mm and 41 mm
• Finishes: Natural aluminium and anodised black
• Typical uses: Tiled terraces on joists, large-format pavers, installations requiring overhang
