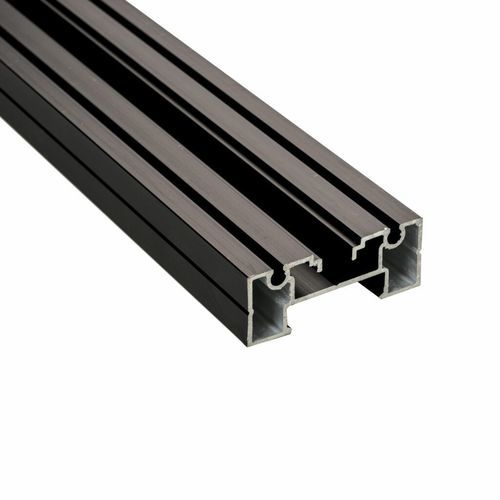

Aluminum joist U-BRS-B

for raised floorsfor patio

Product overview
Aluminium joist for tiled terraces and raised paving installations. The U-BRS-B profile has a 38 mm thickness and is designed to receive ceramic pavers from 20 mm and above. A minimum clear opening of 55 mm under the paver is required. The shaped profile accelerates installation and ensures stable support for professional assemblies.

Accessories & fixing

• PB-KIT-2: required support accessory to fix the joists on BUZON pedestals in the PB range. PB-KIT-2 attaches to the pedestal by press-fit.
• Fixing method: once PB-KIT-2 is fitted on the pedestal, press the joist onto the pedestal; the joist's shaped base locks automatically while allowing the pedestal to slide for optimal positioning.

Available variants

• U-BRS-B: coated model.
• U-BRS-M: uncoated / metal model.

Downloads (available)

• Installation Manual U-BRS
• Technical Data Sheet U-BRS 38 MM
• Technical Data Sheet U-BRS 38 MM Metal

Technical images
Technical and product images are provided, including packshots and mock-up views for 24 mm and 38 mm versions to support specification and installation planning.

Technical specifications

• Material: Aluminium
• Profile thickness: 38 mm
• Suitable paver thickness: from 20 mm and up
• Minimum clearance under paver: 55 mm
• Required fixing accessory: PB-KIT-2 (press-fit on PB range pedestals)
• Compatibility: BUZON PB range pedestals
• Available finishes: coated (U-BRS-B) and uncoated/metal (U-BRS-M)
• Applications: supports installation of tiled terraces and raised paving systems (professional use)
