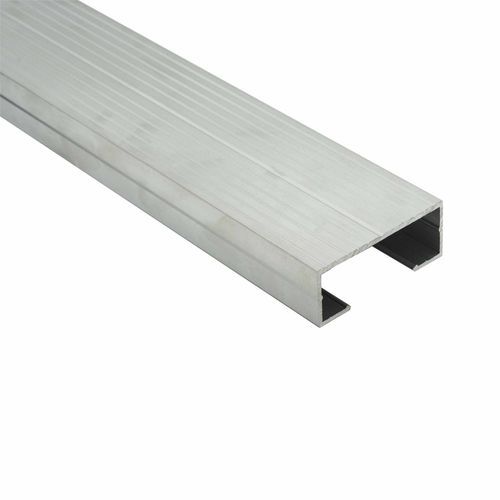

Aluminum joist U-BRS-WOOD-M

for raised floorsfor patiodurable

Product overview
The U-BRS-WOOD system provides a modular structure to create raised outdoor terraces with wooden or composite decking. The solution combines adjustable PB pedestals with reinforced 24 mm aluminium joists, available in Natural and Anodised finishes.

Advantages and uses

• Compatible with most wooden or composite decking boards.
• Joists permit a cantilever to simplify edge finishing and reduce installation time.
• Perfectly straight reinforced joists facilitate levelling and accelerate assembly.
• Increased section rigidity improves stability for taller raised structures.
• Anodised finish reduces reflections and enhances corrosion resistance in aggressive environments (chlorine, fresh concrete, seawater or salt).

Documents available

• Installation Manual U-BRS-WOOD (PDF)
• Technical Data Sheet U-BRS-24-WOOD-M (PDF)

Technical specifications

• Model: U-BRS-24-WOOD-M
• Internal code: 21 2712
• Material: Aluminium, reinforced
• Joist thickness: 24 mm (reinforced)
• Finishes: Natural, Anodised
• Components: Adjustable PB pedestals + reinforced 24 mm aluminium joists
• Application: Raised outdoor terraces with wooden or composite decking
• Key features: allows cantilever; straight joists for easy levelling; enhanced rigidity for tall structures; anodised option for reduced reflections and improved corrosion resistance
