Aluminum joist U-BRS-M

for raised floorsdurable

Product name

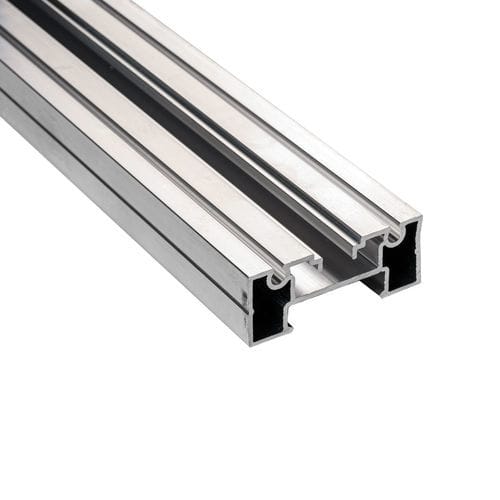

Aluminium joist U-BRS-M for 20 mm ceramic pavers — 24 mm thickness

Overview
U-BRS-M aluminium joists facilitate the installation of 20 mm ceramic pavers across a range of tile thicknesses. The joist reduces installation time and provides increased structural stability for professional raised paving and decking applications. With a section thickness of 24 mm, it requires a minimum opening of 41 mm beneath the paver.

Compatibility and installation
The PB-KIT-2 support is required to fix U-BRS-M joists onto BUZON pedestals in the PB range. PB-KIT-2 is pressed onto the pedestal. Once the support is installed, pressing the joist onto the pedestal engages the shaped base, which clips in automatically while allowing the pedestal to slide under the joist for precise positioning.

Available versions

• U-BRS-M: joist without coating (metal)
• U-BRS-B: joist with coating

Technical specifications

• Material: aluminium
• Joist thickness: 24 mm
• Minimum opening under paver: 41 mm
• Designed for 20 mm ceramic pavers (suitable for a range of paver thicknesses)
• Requires PB-KIT-2 support for fixing on BUZON PB range pedestals
• Fixing method: PB-KIT-2 presses onto pedestal; shaped base of joist clips in automatically and allows pedestal sliding for positioning
• Available variants: coated (U-BRS-B) and uncoated (U-BRS-M)
