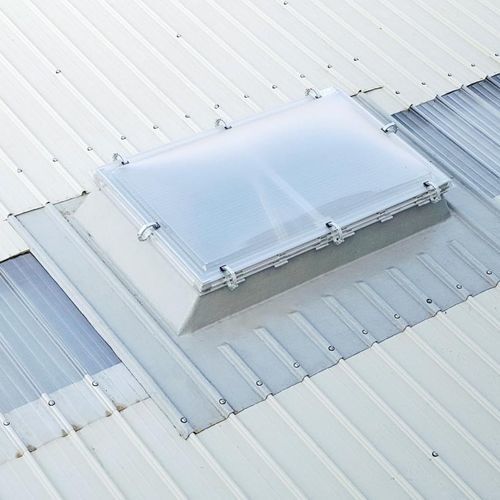

Glass dome for natural lighting K160 FX VELA SERIES

polycarbonatecurvedreinforced

K160 FX series monobloc domes have been introduced for their excellent thermal insulation at the expense of great load bearing capacity obtained with solid polycarbonate sheets and a lower hail resistance. They are manufactured by thermoforming alveolar polycarbonate sheets, UV rays protected, in standard opal white colour, with reaction to fire classification B-s2-d0 according to EN 13501-1 Standard. The fastenings are made with standard clamps, which offer the maximum guarantee to water tightness and thermal expansion. In order to get a correct installation, the domes need a perimeter support with thickness to the finished of any sheaths of 6.5 cm on concrete walls, wood, prefabricated glass fibre-reinforced plastic (GFRP) or metallic upstands. CAODURO® domes are manufactured and tested according to the following European Standard which requires CE marking: EN 1873 Prefabricated accessories for roofing – Individual rooflights of plastics – Product specification and test methods.
