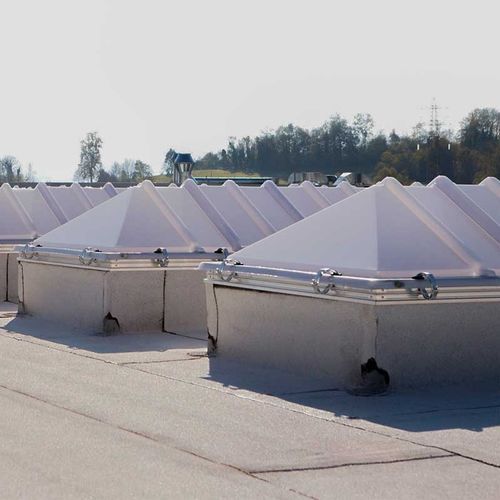

Double-glazed skylight 045 FX SERIES

electricsingle-glazedwith skylight frame

Continuous modular 040 FX (single skin) and 045 FX (double skin) series skylights are manufactured by thermoforming first quality polycarbonate (PC) sheets, in standard opal white colour. Each intermediate element, 180 cm long, is realized with 7 stiffening ribs 30 cm spaced. Cutting appropriately the ribs, it is possible to obtain sub-multiple 30, 60 or 90 cm long. These skylights are surely the ideal solution to take advantage of natural zenithal lighting, as their modularity permits to have very long roof openings. It is possible to apply to both models the whole or partial opening systems. The fastenings are made with standard clamps, which offer the maximum guarantee to water tightness and thermal expansion. PMMA skylights are available upon request and depending on the quantities. Our skylights can be installed on metallic upstands, metallic upstands for continuous ventilation, standard GFRP monobloc upstands, GFRP monobloc upstands with extractors, Onda Europa GFRP monobloc upstands, GFRP monobloc upstands on corrugated roofing sheets, GFRP monobloc upstands for curved sandwich panels, concrete or wooden upstands (not supplied by us). Each aluminium frame can be standard or provided with low thermal transmittance profile BT. It is suitable to be combined with manual opening device, electric opening device for daily ventilation, manhole opening device for roof access and eventually SMOKE OUT® for smoke and heat exhaust ventilation system installation.
