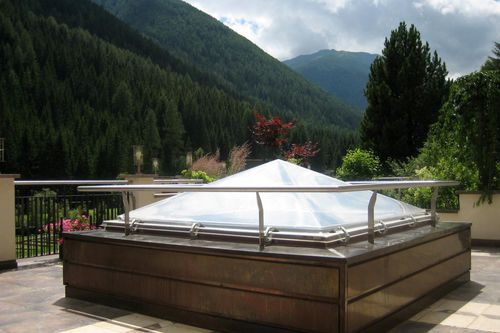

Diamante series domes are made only upon request in square and rectangular shape, with the dimensions indicated on the product detail schedule. They are manufactured by thermoforming first quality polycarbonate (PC) sheets, in clear transparent or opal white colour, UV rays protected in order to guarantee longer duration against yellowing, with reaction to fire classification B-s1-d0 or B-s2-d0 according to UNI-EN 13501-1:2009 Standard.
The peculiar shape of the element ensures a great light diffusion and a significant thermal insulation, which varies depending on the model. The availability of different solutions in single, double and triple skin allows to install the domes in the most different environmental conditions. The solution of thermal insulation and energy saving problems is the reason that led CAODURO® to create new models.
The fastenings are made with standard clamps, which offer the maximum guarantee to water tightness and thermal expansion.
Domes made with polymethyl methacrylate (PMMA) sheets, Climate Control PC (with a better UV rays protection factor) or different coloration sheets are also available upon request and depending on the quantities.
Our domes can be installed on metallic upstands, metallic upstands for continuous ventilation, standard GFRP monobloc upstands, GFRP monobloc upstands with extractors, Onda Europa GFRP monobloc upstands, GFRP monobloc upstands on corrugated roofing sheets, GFRP monobloc upstands for curved sandwich panels, concrete or wooden upstands (not supplied by us).
Each aluminium frame can be standard or provided with low thermal transmittance profile BT.
