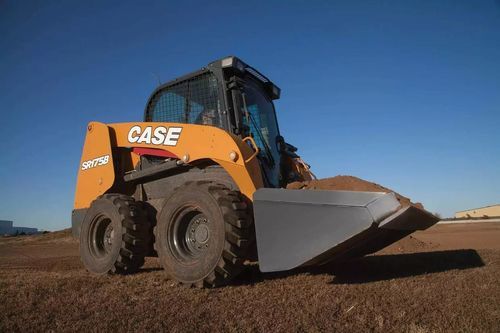

Skid steer loader SR175B

Overview
The SR175B packs significant performance into a compact footprint, providing a simple and intuitive platform for earthmoving and material handling. Designed for ease of ownership, operation and maintenance. Optional counterweights increase rated operating capacity up to 835 kg for enhanced lifting performance.

Key specifications

• Operating Load - ROC (Rated Operating Capacity) at 50%: 790 kg
• Power: 50 kW / 67 hp

Compatible attachments (selected)

• Asphalt float — ST200. Available for SR175B up to TV450B with standard flow; 1900 mm width.
• Backhoe — Possible buckets: 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm. With mechanical or hydraulic Side Shift Block.
• Bale spike — For handling round bales; 980 mm width. Suitable across full Skid steer & Compact track loader range.
• Broom bucket — Different sizes available and optional dust suppression kit. Supplied with polypropylene bristles as standard. Ideal for many surfaces and applications. Suitable for full Skid steer & Compact track loader range.

Brochures
Model brochure available for B-Series Skid Steer Loaders (approx. 3.64 MB).

Technical specifications

• Model: SR175B
• Rated Operating Capacity (ROC) at 50%: 790 kg (optional counterweights increase ROC up to 835 kg)
• Engine Power: 50 kW / 67 hp
• Standard bucket: LPE (Low Profile Extended). DF (Dirt & Foundry) bucket available through Parts department.
• Attachments compatibility includes asphalt float ST200, backhoe (multiple bucket widths), bale spike (980 mm) and broom bucket (various sizes, dust suppression optional).
• Notes: Breakout forces estimated considering both tip and hydraulic limits.
