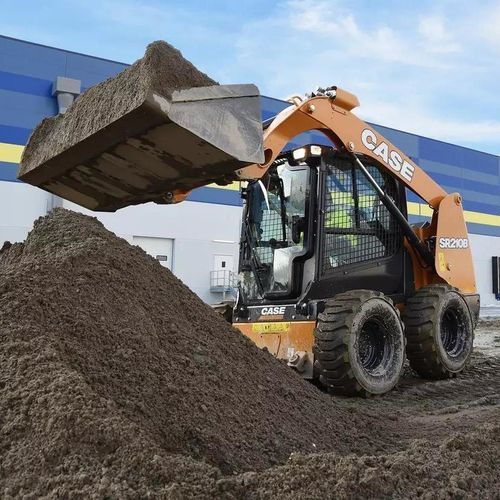

Skid steer loader SR210B

Overview
The SR210B is a medium-frame skid steer designed to deliver performance comparable to larger machines while maintaining a compact footprint. It provides increased torque, enhanced breakout force and improved auxiliary hydraulic performance at 55 kW / 74 hp, using FPT's Stage V emissions solutions.

Downloads
Download Brochures: B-Series Skid Steer Loaders (3.64 MB).

Quick specifications

• Operating Load - ROC (Rated Operating Capacity) at 50%: 905 kg
• Power: 55 kW / 74 hp

Compatible attachments (examples)

• Asphalt float — ST200. Available for SR175B up to TV450B with standard flow; 1900 mm width.
• Backhoe — Possible buckets: 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm. Available with mechanical or hydraulic Side Shift Block.
• Bale spike — For handling round bales. 980 mm width. Compatible with full skid steer & compact track loader range.
• Broom bucket — Different sizes available and optional dust suppression kit. Supplied with polypropylene bristles as standard. Compatible with full skid steer & compact track loader range.

Notes
* LPE (Low Profile Extended) is the standard ex-factory bucket. DF (Dirt & Foundry) bucket can be obtained through Parts department.
** Breakout forces estimated considering both tip and hydraulic limits.

Technical specifications

• Model: SR210B
• Series: B-Series Skid Steer Loaders
• Rated operating capacity (ROC) at 50%: 905 kg
• Engine power: 55 kW / 74 hp
• Emissions: FPT Stage V emissions solutions
• Standard ex-factory bucket: LPE (Low Profile Extended)
• Optional bucket: DF (Dirt & Foundry) available via Parts
• Compatible attachments include asphalt float (ST200), backhoe (multiple bucket widths), bale spike (980 mm), broom bucket (various sizes, dust suppression optional)
• Breakout forces: estimated values considering tip and hydraulic limits
