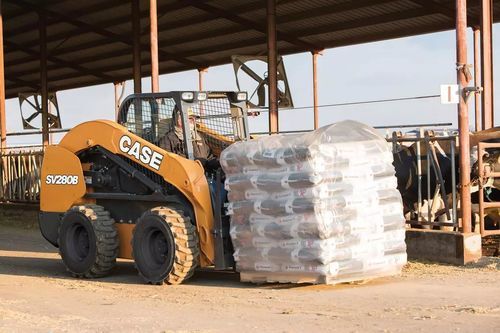

Skid steer loader SV280B

Overview
The SV280B delivers large-frame power with medium-frame efficiency. Industry-leading visibility and an intuitive operator interface with an 8-inch LCD multifunction display enhance usability. Powered by an FPT Stage V engine, the machine is engineered for high performance across diverse jobsite conditions.

Key features

• Engine: FPT Stage V
• Power: 74 hp / 55 kW
• Operator interface: 8-inch LCD multifunction display
• Auxiliary hydraulics: standard flow and high-flow options
• Large-frame power with medium-frame efficiency

Hydraulics & performance

• Standard auxiliary hydraulic flow: 92 lpm
• High-flow auxiliary hydraulics: 143 lpm at 210 bar

Compatible attachments (selected examples)

• Asphalt float — ST200; available for SR175B up to TV450B with standard flow; 1900 mm width
• Backhoe — possible buckets: 300 mm / 400 mm / 500 mm / 600 mm / 700 mm / 800 mm; available with mechanical or hydraulic Side Shift Block
• Bale spike — for handling round bales; 980 mm width; compatible with full skid steer & compact track loader range
• Broom bucket — various sizes; optional dust suppression kit; supplied with polypropylene bristles as standard; suitable for full skid steer & compact track loader range

Solutions

• CASE Protect — extended warranty program to help avoid unexpected costs

Notes
* LPE (Low Profile Extended) is the standard ex-factory bucket. DF (Dirt & Foundry) bucket can be obtained through Parts department. ** Breakout forces estimated considering both tip and hydraulic limits.

Technical specifications

• Operating load - ROC (Rated Operating Capacity) at 50%: 1270 kg
• Power: 55 kW / 74 hp
• Engine: FPT Stage V
• Operator display: 8-inch LCD multifunction display
• Auxiliary hydraulics (standard): 92 lpm
• Auxiliary hydraulics (high-flow): 143 lpm @ 210 bar
• Standard ex-factory bucket: LPE (Low Profile Extended)
