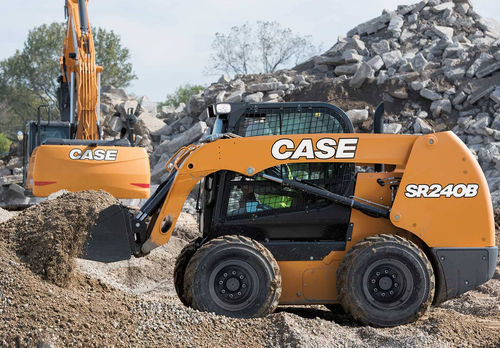

Skid steer loader SR240B

Product Overview
The SR240B matches large-frame power and performance with the efficiency of a medium-frame skid steer. It provides a rated operating capacity (ROC) at 50% of 1088 kg (1178 kg with the additional bolt-on counterweight) on a stable wheelbase, and is intended for digging, grading, loading and operating a wide range of hydraulic attachments. The machine is powered by an FPT Stage V engine combining performance and efficiency.

Quick Specs

• Rated operating capacity (ROC) at 50%: 1088 kg (1178 kg with additional bolt-on counterweight)
• Power: 55 kW / 74 hp

Compatible Attachments

• Asphalt float — ST200; available for SR175B up to TV450B with standard flow; 1900 mm width
• Backhoe — possible buckets: 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm; available with mechanical or hydraulic Side Shift Block
• Bale spike — for handling round bales; 980 mm width; fits full skid steer & compact track loader range
• Broom bucket — various sizes available; optional dust suppression kit; supplied with polypropylene bristles as standard; suitable for multiple surfaces; fits full skid steer & compact track loader range

Brochures

• B-Series Skid Steer Loaders — 3.64 MB (model brochure available for download)

Technical specifications

• Model: SR240B
• Rated operating capacity (ROC) at 50%: 1088 kg (1178 kg with additional bolt-on counterweight)
• Engine: FPT Stage V
• Power: 55 kW / 74 hp
• Designed for: digging, grading, loading, and operating numerous hydraulic attachments
• Stable wheelbase optimized for performance and efficiency
• Standard ex-factory bucket: LPE (Low Profile Extended)
• Optional bucket: DF (Dirt & Foundry) available via parts channels
• Breakout forces are estimated considering both tip and hydraulic limits
