Roof sandwich panel ALUSTEP FN
for crosswallsfor interiorfor joinery

roof sandwich panel
roof sandwich panel
roof sandwich panel
roof sandwich panel
Add to favorites
Compare this product


Characteristics

Applications
roof, for crosswalls, for interior, for joinery
Facing material
2 fiberglass faces
Core material
cellular core
Technical characteristics
IMO MED certified
Width

1,220 mm
(48 in)

Length

2,440 mm
(96 in)

Thickness

Min.: 5 mm
(0.2 in)

Max.: 35 mm
(1.38 in)

Description

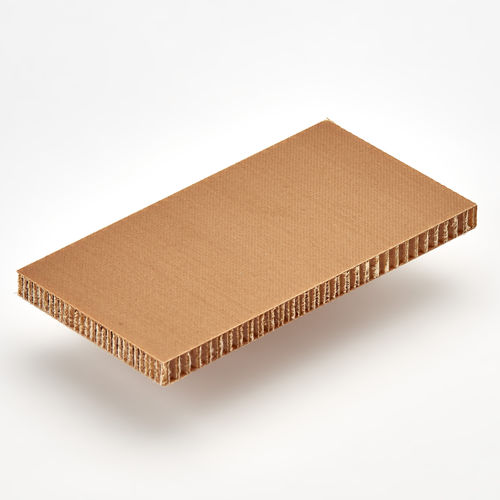

ALUSTEP® FN is a lightweight sandwich panel with a core in aramid paper and skins in glass fibre reinforced with phenolic resin.This panel offers unique characteristics since it combines lightweight with high mechanical properties. Thanks to the low flammability of phenolic resin, the certified version of this panel can be used in shipyards, trains and transport in general. A - SKINS IN GLASS FIBRE FABRIC impregnated with phenolic resin Thickness mm: 0,25÷0,3 B - CORE IN ARAMID PAPER HONEYCOMB Nomex Diameter: from Ø1/8” to Ø3/16”, X1 X1 = other diameters on request Certified version of ALUSTEP FN must be requested while asking for a quotation. Certified products must be requested in advance and might have a price surcharge due to certified materials.
