Crosswall sandwich panel ALUSTEP 500 LIGHT

for partition wallfor interiorfor floor

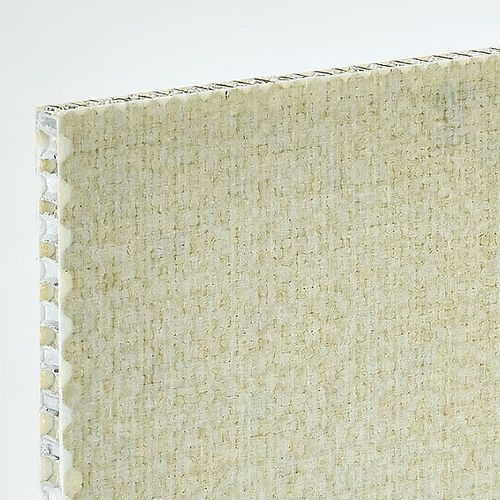

ALUSTEP® 500 LIGHT is a sandwich panel with a core in aluminium honeycomb faced with fibre glass impregnated with epoxy resin. This panel offers unique characteristics since it combines lightweight with high mechanical properties. The application of these panels for example permits huge savings as far as weight and thickness of the slabs of natural stones, such as marbles and granite and mosaics are concerned. In this way, also costs can be reduced. A - SKINS IN BIDIRECTIONAL GLASS FIBRE FABRIC 490g/m2 impregnated with epoxy resin B - CORE Aluminium honeycomb (Alloy series 3000*) with hexagonal cells Diameter: Ø1/4”, Ø3/8”,** Thickness foil: from 50 to 70 microns Thickness starting from 3 mm to 80 mm *To Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104 ** Ø3/8” on request * Tested by Certificating Institute ** Tested by Internal Laboratory † Sample dimension with 4 support points (L, W) 540x50 ‡ All values refer to a panel made of aluminum honeycomb with a cell diameter 6 mm 56 kg/m3 and two-components polyurethane adhesive
