Wall sandwich panel ALUSTEP 300 LIGHT

for partition wallfor interiorfor doors

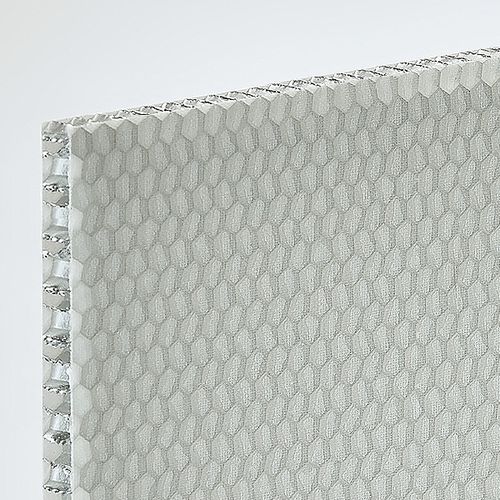

ALUSTEP ® 300 LIGHT is a lightweight composite panel with an aluminum honeycomb core faced with fibreglass impregnated with 290 gram epoxy resin. This panel offers unique characteristics as it combines lightweight with superior mechanical properties. This is the lightest panel of Alustep series. A - SKIN IN BI - DIRECTIONAL GLASS FIBRE FABRIC impregnated with epoxy resin 290g/m2 B - CORE IN ALUMINIUM HONEYCOMB (Alloy series 3000*) with hexagonal cells Diameterin inches: Ø1/4”, Ø3/8”** Foil Thickness: from 50 to 70 microns Thickness starting from 3 mm to 80 mm * To Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104 ** Ø3/8” on request ** Tested by Internal Laboratory *** Approximate value ‡ All values refer to a panel made of aluminum honeycomb with a cell diameter 6 mm 56 kg/m3 and epoxy adhesive
