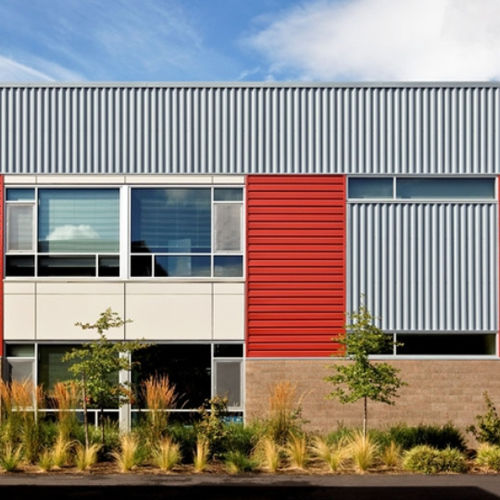

Panel cladding CONCEPT SERIES® : CS-660

galvanised steelribbed

Concept Series® Concealed Fastener Panels provide thousands of combinations of articulation, shadows, and sight lines, along with a complete line of design, finish, integration, special systems and detail options. Features: Substrates: Standard 24 18 gage G-90 galvanized steel Galvanized steel, galvalume® steel, aluminum or stainless steel optional Zinc -- .039 (1mm) Surface Finish: Smooth Embossed Zinc: Smooth only Panel Depth: 7/8" [22mm] Panel Width: 16" [406mm] Panel Lengths 5 ft. [1.52m] to 30 ft. [9.14m] standard Shorter & longer lengths available contact CENTRIA Zinc 20-0 [6.10m] horizontal applications; 100 [3.05m] vertical applications Options An extended fastener leg option is for vertical applications (CS-660E), except for zinc. A clip is not needed and the panel is held in place by a screw. Microline Extrustions are available that make it easy to trim around windows and doors, inside or outside corners, at the base of walls or create clean vertical joints. Profile Louvers match corresponding panels and blend invisibly into a wall, eliminating visual breaks in site lines.
