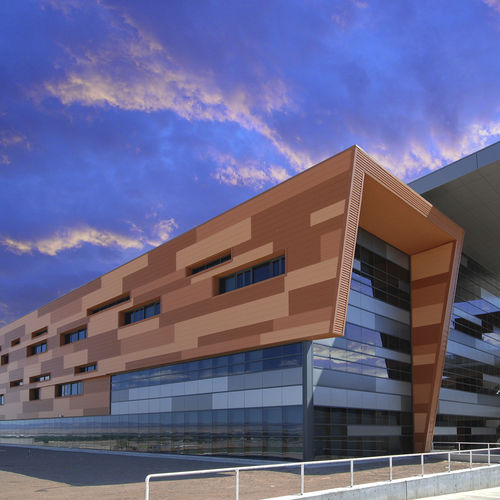

Concept Series® Concealed Fastener Panels provide thousands of combinations of articulation, shadows, and sight lines, along with a complete line of design, finish, integration, special systems and detail options.
Features:
Substrates:
Standard 22 18 gage G-90 galvanized steel
Galvanized steel, galvalume® steel, aluminum or stainless steel optional
Zinc -- .039 (1mm)
Surface Finish:
Smooth
Embossed
Zinc: Smooth only
Panel Depth:
7/8 [22mm]
Panel Width:
16 [35mm]
Panel Lengths
5 ft. [1.52m] to 30 ft. [9.14m] standard
Shorter & longer lengths available contact CENTRIA
Zinc 20-0 [6.10m] horizontal applications; 100 [3.05m] vertical applications
Options
An extended fastener leg option is for vertical applications (CS-610E), except for zinc. A clip is not needed and the panel is held in place by a screw.
Microline Extrustions are available that make it easy to trim around windows and doors, inside or outside corners, at the base of walls or create clean vertical joints.
