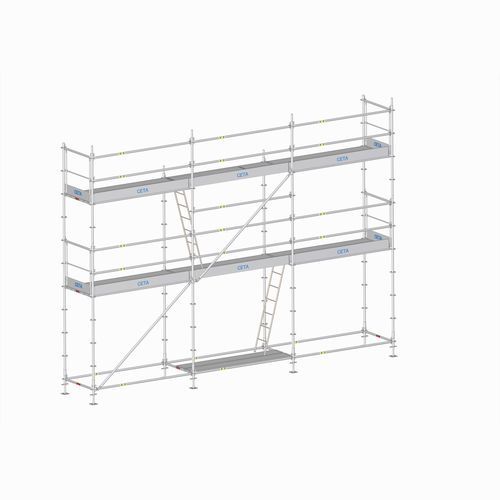

Galvanized steel scaffolding MULTICETA

galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
Add to favorites
Compare this product


Characteristics

Material
galvanized steel

Description

MULTICETA MULTIDIRECTIONAL SCAFFOLDING SYSTEM The scaffolding system in hot-dip galvanised steel with the multidirectional rosette is suitable for all types of construction. Width 77 cm – Modules 44-50-77-100-110-150-180-200-250-300 Width 110 cm – Modules 44-50-77-100-110-150-180-200-250 MULTICETA MULTIDIRECTIONAL SCAFFOLDING System : With cross-braces and cross-beams, with an 8-way multidirectional rosette Material : S235JR, S355JR steel Tubes : Diameter 48.3 mm Nominal thickness 3.2 mm Finish : Hot-dip galvanised coating in accordance with UNI EN ISO 1461 Welding : In accordance with regulations UNI EN ISO 15607 and UNI EN 1418 Ministerial authorisation : For loads of 300 N/m2 EN 12811 Certification : Certificate of conformity of the scaffolding to European regulations EN 12810-1 and EN 12811-1 MC SYSTEM WIDTH 77 CM DIMENSIONS Width : 77 cm Bay length : 44 / 50 / 77 / 100 /110 / 150 / 180 / 200 / 250 / 300 cm Height : 200 cm MC SYSTEM WIDTH 110 CM DIMENSIONS Width : 110 cm Bay length : 44 / 50 / 77 / 100 /110 / 150 / 180 / 200 / 250 cm Height : 200 cm

Catalogs

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
